High voltage and surge capability TG-C 40A triac
- Product Description
-

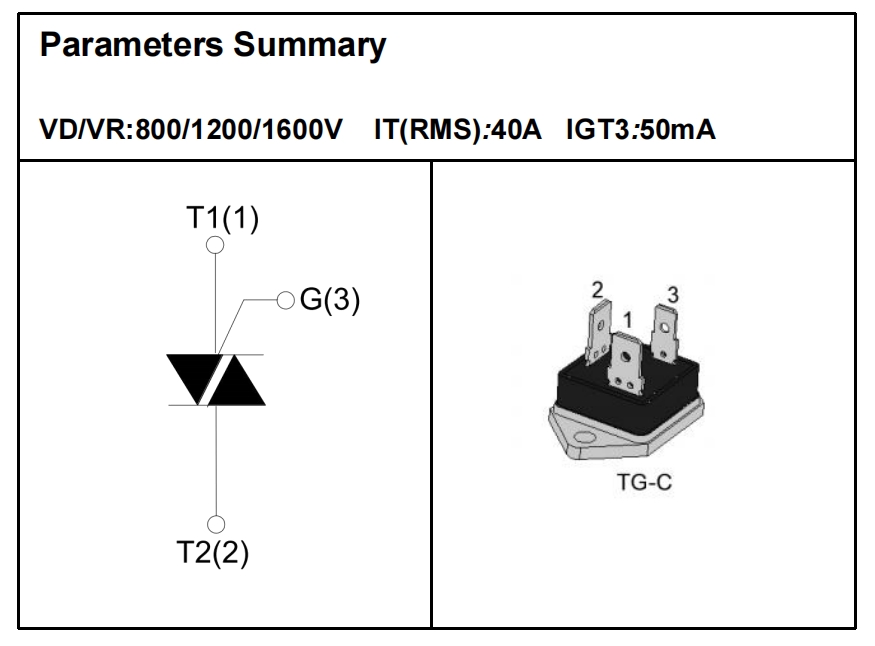

P/N: YZPST-T41T Series 40A TRIACSFEATURESGlass Passivated JunctionsHigh voltage and surge capabilityLow Thermal Resistance and DurabilityTriggering in three quadrantsAPPLICATIONSStatic relaysHeating regulationIn-duction motor starting circuitsPhase control operation in light dimmersMotor speed controllers
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Value
Unit
Storage junctiontemperature range
Tstg
-40~ 150
℃
Operating junction temperature range
Tj
-40~ 125
℃
Repetitive peak off-state voltage (T =25℃)
VDRM
800/1200/1600
V
Repetitive peak reverse voltage (T =25℃)
VRRM
800/1200/1600
V
RMS on-state current
IT(RMS)
40
A
Non repetitive surge peak on-state current
(full cycle, F=50Hz)
ITSM
400
A
I2t value for fusing (tp= 10ms)
I2t
800
A2 S
Critical rate of rise of on-state current(I =2×IGT)
di/dt
50
A/μS
Peak gate current
IGM
8
A
Peakgate power dissipation
PGM
10
W
Average gate power dissipation
PG(AV)
1
W
Thermal Resistances
Symbol
Parameter
Value
Unit
Rth(j-c)
Junction to case
0.7
℃/W
Rth(j-a)
Junction to ambient
45

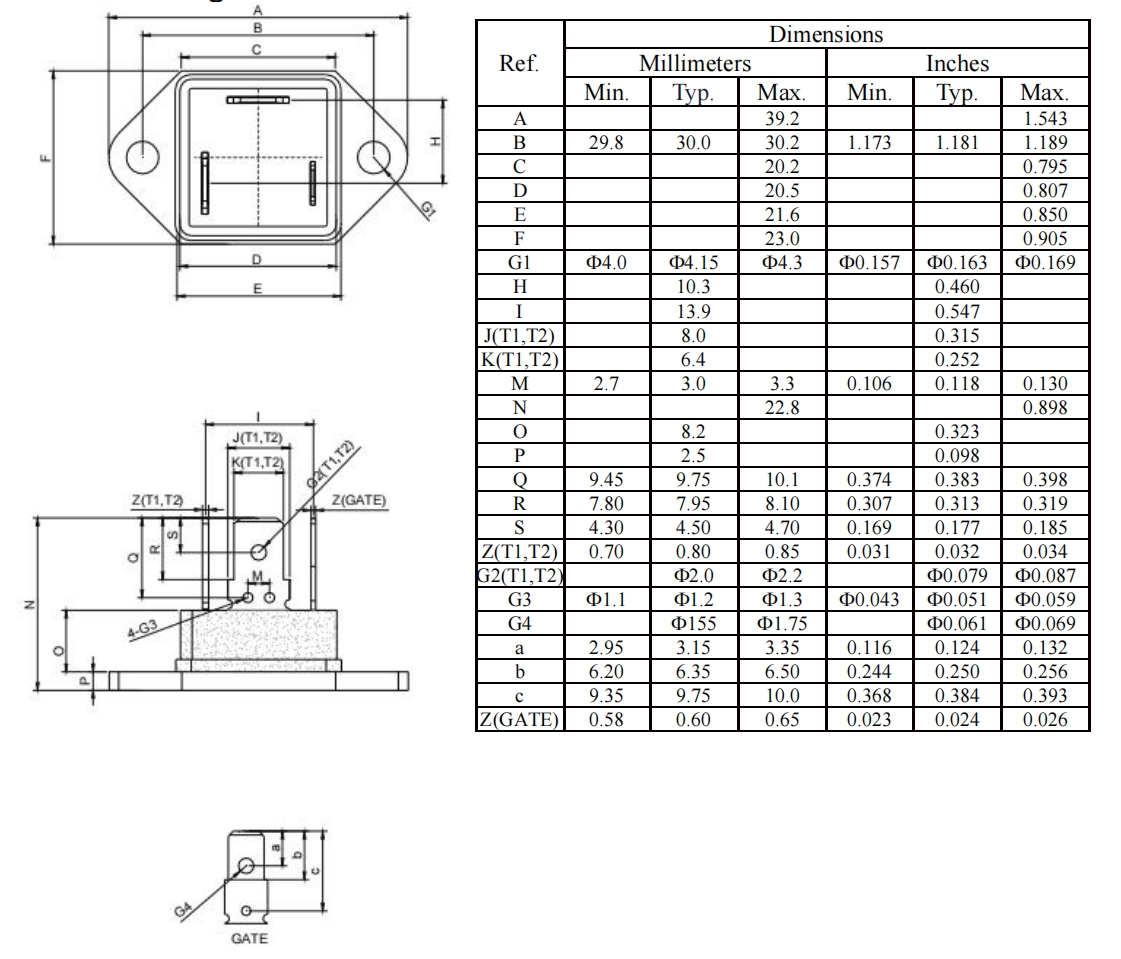

TG-C Package Mechanical Data
