YZPST-SL-R3040SRCP386 3.0mm DIA Rotundity LED lamp diode
- Product Description
-
YZPST-SL-R3040SRCP386 3.0 mm ROTUNDITY LED LAMP

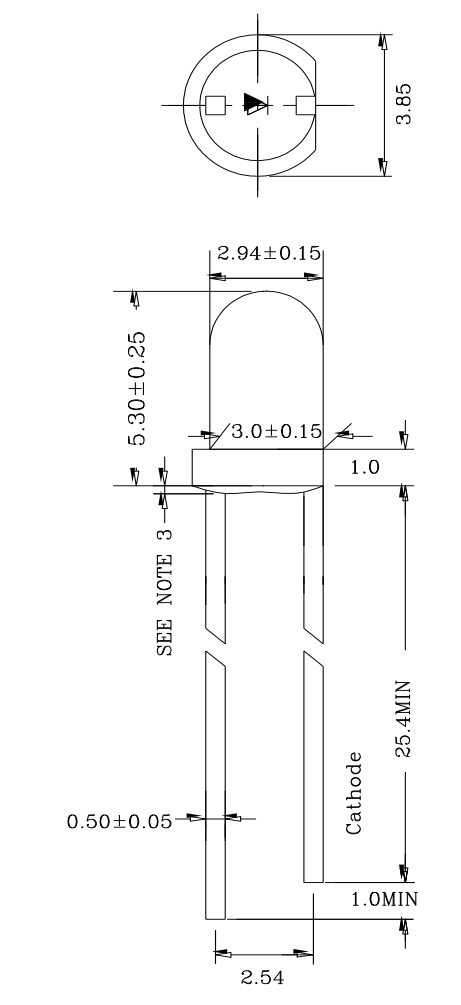

PACKAGE DIMENSIONS
Note:1. All Dimensions are in millimeters.2. Tolerance is ±0.25mm (0.010 "). Unless otherwise specified.3. Protruded resin under flange is 1.5mm (0.059 ") max.4. The lamps have sharp and hard points that may injure human eyes or fingers etc., so please pay enough care in the handling.5. ESD≤400VFEATURES3.0mm DIA Rotundity LED lampLow power consumptionI.C. CompatibleLong life solid state reliabilityPB Free product (Compliant with EU’s RoHS.)CHIP MATERIALSDice Material : GaAlInPLight Color : RedLens Color : Water ClearABSOLUTE MAXIMUM RATING : ( Ta = 25°C )Symbol
Parameter
Rated
Unit
PAD
Power Dissipation
70
mW
VR
Reverse Voltage
5
V
IF
Average Forward Current
30
mA
IPF
Peak Forward Current Per Chip (Duty-0.1,1KHz)
100
mA
-
Derating Linear From 25 °C
0.4
mA/ °C
Topr
Operating Temperature Range
-25 °C to 85 °C
Tstg
Storage Temperature Range
-40 °C to 85 °C
ELECTRO-OPTICAL CHARACTERISTICS : ( Ta = 25 °C )
SYMBOL
PARAMETER
TEST
MIN.
TYP.
MAX.
UNIT
Vf
Forward Voltage
IF=20mA
1.8
2.2
V
IR
Reverse Current
VR=5 V
10
μA
λd
Dominant Wavelength
IF=20mA
620
630
nm
2θ1/2
Half Intensity Angle
IF=20mA
30
deg
Iv
Luminous Intensity
IF= 20mA
500
1000
mcd
