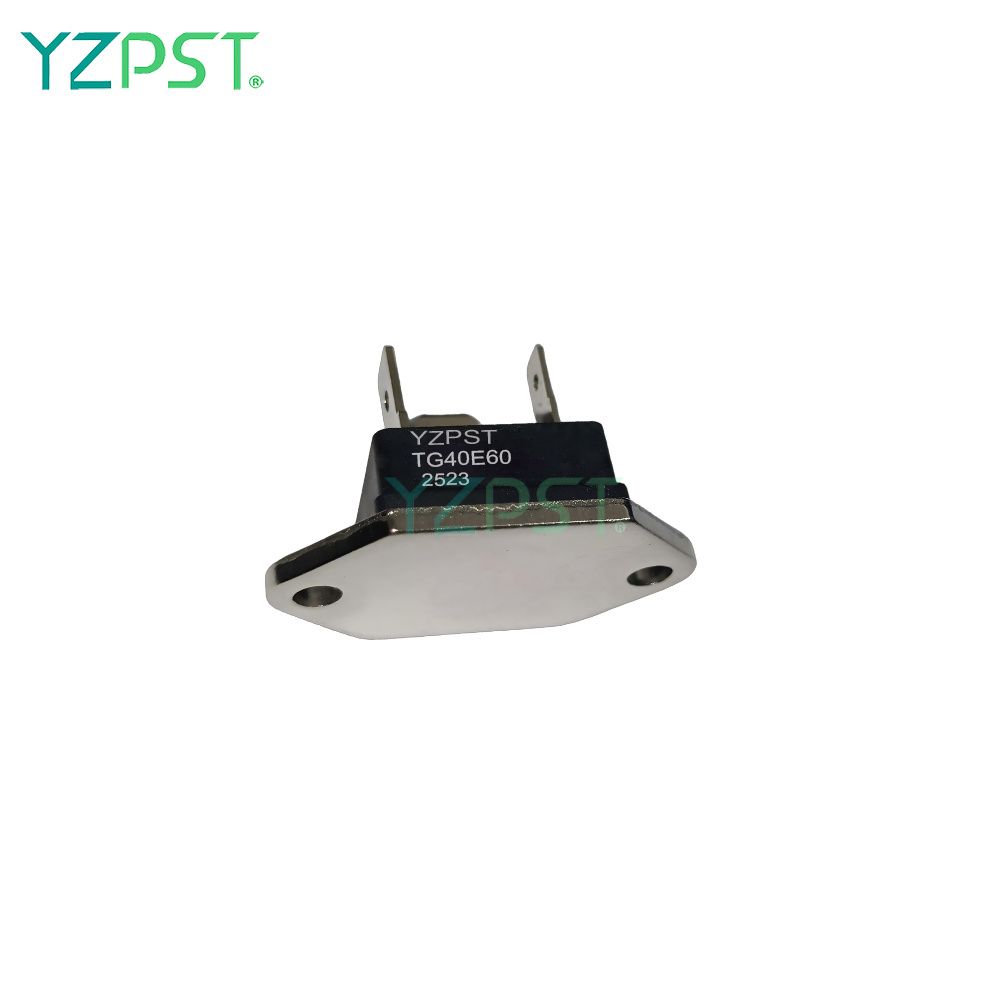

40A TG-C package TG40E60 isolated mold Triac
- 产品描述
-
TRIAC （ISOLATED MOLD TYPE）P/N:YZPST-TG40E60TG40E is isolated mold triac suitable for wide range ofapplications like copier, micro wave ovens, solid state switches, motor control, light control and heater control.. IT（AV） 40A. High surge capability 420A . Isolated Nounting（AC2500V）. Tab Terminals
Maximum Ratings
Symbol
Item
Ratings
Unit
TG40E60
VDRM
Repetitive Peak Off-State Voltage
600
V
Symbol
Item
Conditions
Ratings
Unit
IT（RMS）
R.M.S. On-State Current
Tc ＝64℃
40
A
ITSM
Surge On-State Current
One cycle, 50/60Hz, peak value, non-repetitive
380/420
A
I2t
I2t
Value for one cycle of surge current
730
A2s
PGM
Peak Gate Power Dissipation
10
W
PG（AV）
Average Gate Power Dissipation
1
W
IGM
Peak Gate Current
3
A
VGM
Peak Gate Voltage
10
V
di/dt
Critical Rate of Rise of On-State Current
IG ＝100mA，VD = ½VDRM，diG/dt ＝1A/ μs
50
A/ μs
Tj
Operating Junction Temperature
-40～＋125
℃
Tstg
Storage Temperature
-40～＋150
℃
VISO
Isolation Breakdown Voltage（R.M.S.）
A.C.1 minute
2500
V

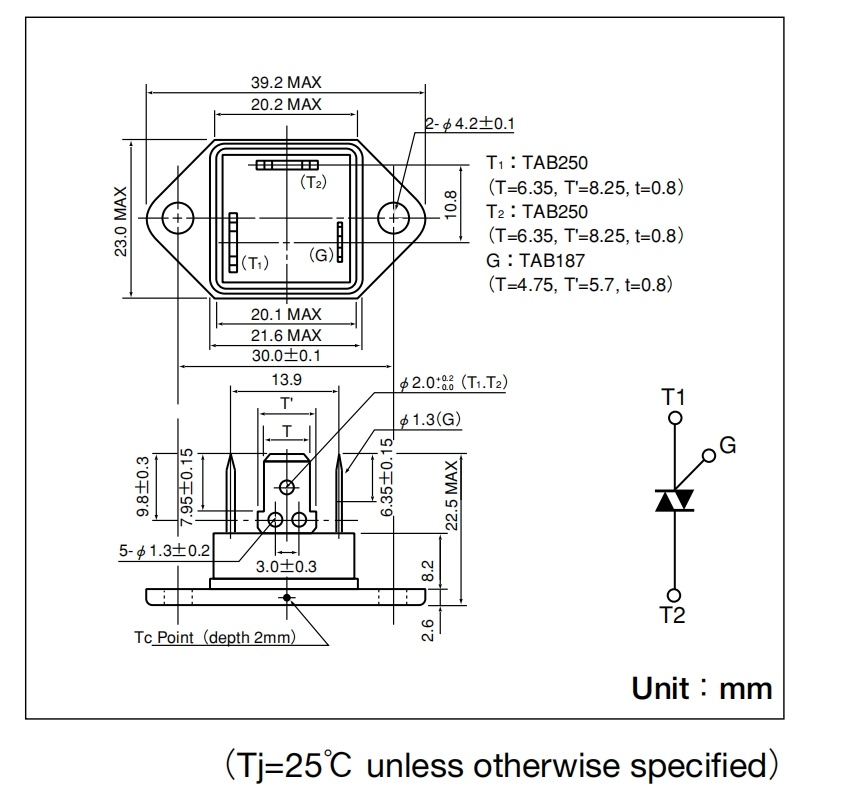

Mounting Torque（M4）
Recommended Value 1.0～1.4N ・m（10～14kgf・㎝）
1.5（15）
N･m
（kgf･㎝）
Mass
Typical value
23
g
Electrical Characteristics
Symbol
Item
Conditions
Ratings
Unit
Min.
Typ.
Max.
IDRM
Repetitive Peak Off-State Current
Tj ＝125℃, VD ＝VDRM
5
mA
VTM
Peak On-State Voltage
IT ＝60A
1.4
V

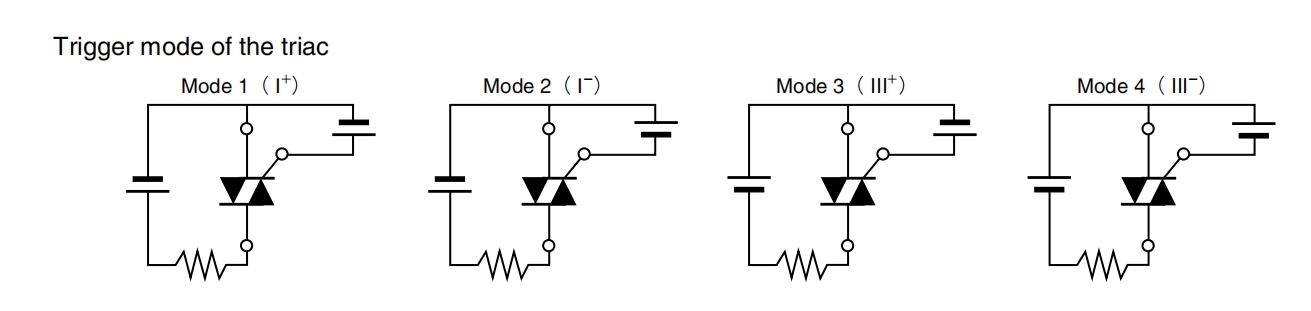

I GT1
1
Gate Trigger Current
VD ＝6V, IT ＝1A
50
mA
I GT1
2
50
mA
I GT3
3
―
―
―
mA
I GT3
4
50
mA
VGT1
1
Gate Trigger Voltage
VD ＝6V, IT ＝1A
1.5
V
VGT1
2
1.5
V
VGT3
3
―
―
―
V
VGT3
4
1.5
V
VGD
Non-Trigger Gate Voltage
Tj ＝125℃, VD = ½VDRM
0.2
V
dv/dt
Critical Rate of Rise of Off-State Voltage
Tj ＝125℃, VD =⅔VDRM, Exponential wave.
500
V/ μs
〔dv/dt〕c
Critical Rate of Rise of Off-State Voltage at commutation
Tj ＝125℃, VD =⅔VDRM,〔di/dt〕c ＝10A/ms
6
V/ μs
IH
Holding Current
30
mA
Rth（j-c）
Thermal Impedance
Junction to case
1.3
℃/W
