Thick Film Chip Resistor SMD Resistor

Thick Film Chip Resistor SMD Resistor This acknowledgement applies to the lead-free and halogen-free SCR series thick film chip resistors produced by our company. Our company's lead-free products refer to end electrodes that comply with RoHS requirements and are lead-free, while lead present in the resistance layer glass material is compliant Comply with the lead exclusion clause of RoHS. This product belongs to the universal series.

Product Number:

Category：

Resistor

INQUIRY

产品描述

Thick Film Chip Resistor SMD Resistor

This acknowledgement applies to the lead-free and halogen-free SCR series thick film chip resistors produced by our company.

Our company's lead-free products refer to end electrodes that comply with RoHS requirements and are lead-free, while lead present in the resistance layer glass material is compliant

Comply with the lead exclusion clause of RoHS.

This product belongs to the universal series.

type	Maximum rated voltage	Maximum overload voltage	T.C.R (ppm/℃)	Resistance range		JUMPER (0Ω)	Temperature range for use
				F(±1%)/D(±0.5%) E-24、E-96	J(±5%) E-24
0201	25V	50V	±400	1Ω≦R＜9.1Ω	1Ω≦R＜9.1Ω	50mΩ MAX.	-55℃ ~ +125℃
			±200	10 Ω≦R≦10MΩ	10 Ω≦R≦10MΩ
0402	50V	100V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.	-55℃ ~ +155℃
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
0603	75V	150V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
0805	150V	300V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
1206	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
1210	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.	-55℃ ~ +155℃
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
2010	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ
2512	200V	400V	±100	10Ω≤ R＜1MΩ	---	50mΩ MAX.
			±400	1Ω≤ R＜9.1Ω	1Ω≤ R＜9.1Ω
			±200	1MΩ≤ R≤ 10MΩ	10Ω≤ R≤ 10MΩ

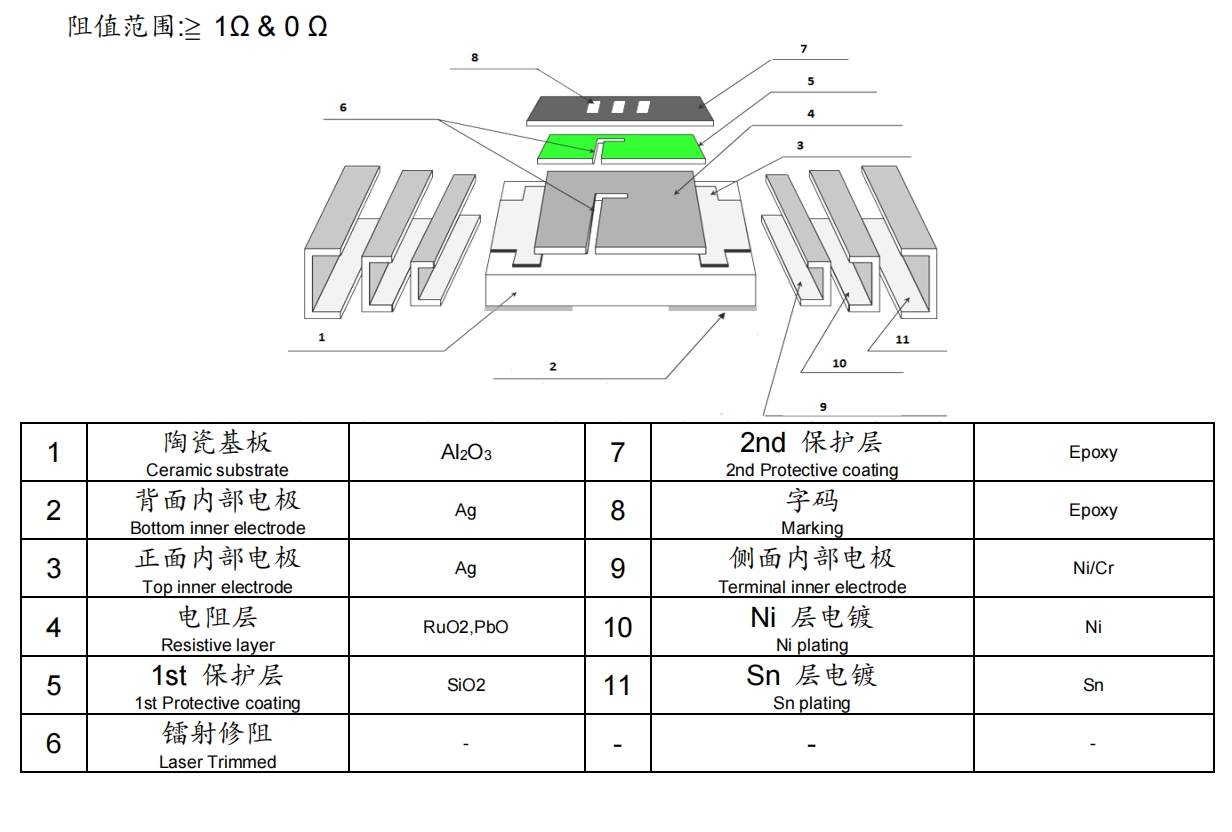

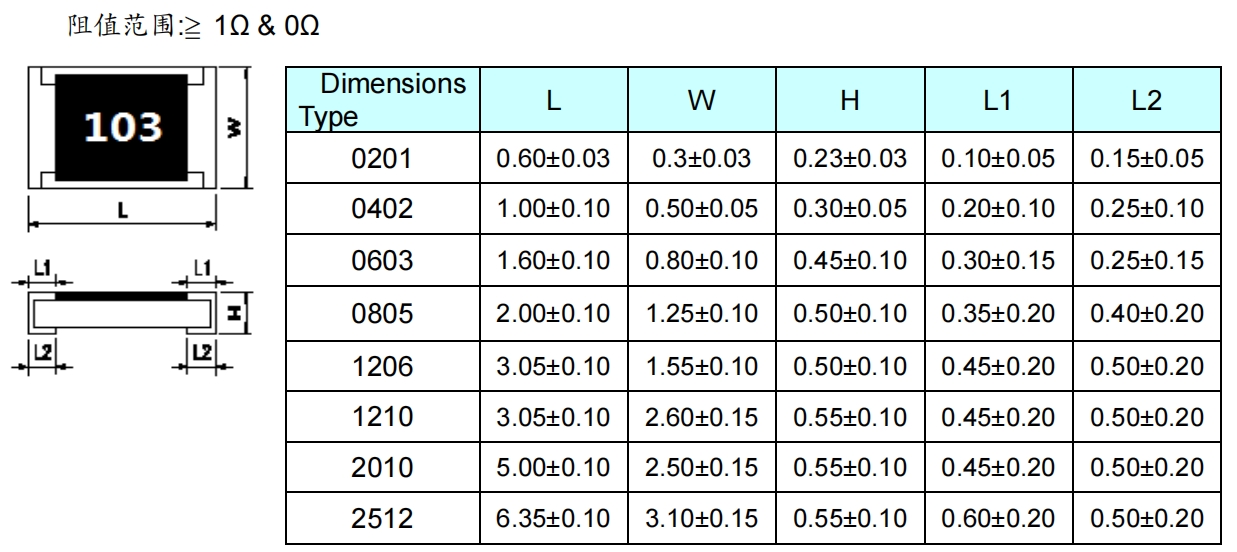

Structural diagram
