K3002GRP Sidac High Voltage Bidirectional Triggers Diodes

P/N: YZPST-K3002GRP Sidac High Voltage Bidirectional Triggers 1A Mpere RMS Features High pressure Sodium Vapor Lighting High Voltage Regulators Pulse Generators Uesd to Trigg Gates of SCR, s and Triacs These are pb free Devices* LED lamp protection Mechanical Data Terminals: Plated axial leads ounting Position: Any

Product Number: YZPST-K3002GRP

Category：

Diode

INQUIRY

Product Description

P/N: YZPST-K3002GRP

Sidac High Voltage

Bidirectional Triggers

1A Mpere RMS

Features

High pressure Sodium Vapor Lighting

High Voltage Regulators

Pulse Generators

Uesd to Trigg Gates of SCR, s and Triacs

These are pb free Devices*

LED lamp protection

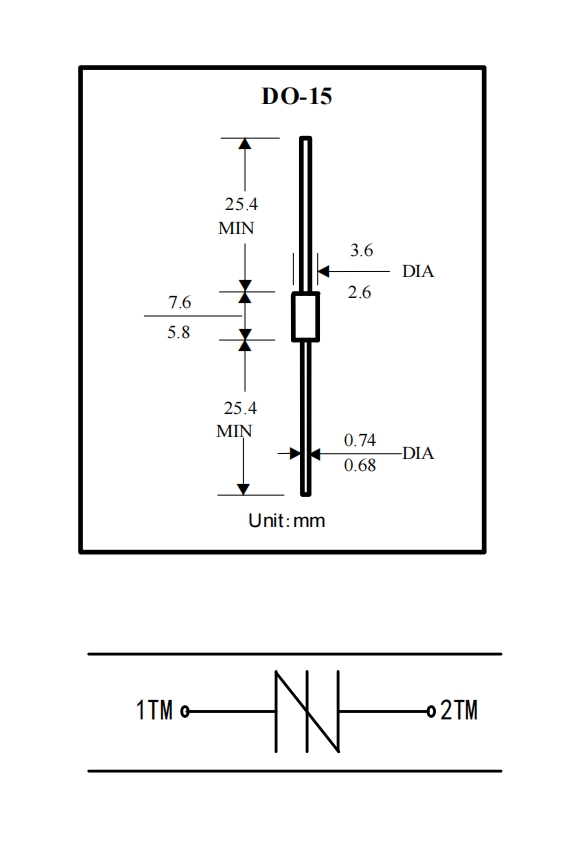

Mechanical Data

Terminals: Plated axial leads

ounting Position: Any

Maximum Ratings & Thermal Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified.

Rating	Symbols	K300	Unit
Maximum repetitive peak reverse voltage （Sine Wsve,50to60Hz,TJ=-40to125℃)	VDRM VRRM

		±240	V
On-state RMS current(TL=80℃,Lead Length=3/8",All Conduction Angles	IT(RMS)

		±1.0	A
Peak Non Repetitive Surge Current		±20

(60Hz One Cycle Sine-wave,TJ=125℃)	ITSM		A
Operating Junction Temperature Range	TJ	-40 to +125	℃
	Tstg	-40 to +125	℃

Storge Temperature Range
Thermal Resistance,Junction-to-led (LEAD LENGTH=3/8")	RθJA	15	℃/W
Lead Solder Temperature	TL	275	℃

(Lead length≥1/16" from Case,10s Max)

ELECTRICAL CHARACTERISTICS (TC = 25℃ unless otherwise noted;Eletricals apply in both directions)

Characteristic	Symbols	YZPST-K3002GRP	Unit
Min		270
Breakover Voltage,lBO=200μA	VBO	330	V
Repetitive peak Off-State Current (50to60Hz Sine Wave)
Repetitive peak Off-State Current (50to60Hz Sine Wave)	IDRM	5	μA
	IBO
Breakover Current	IBO	200	μA
Peak On_State Voltage		Typ 1.5 Max 4
(ITM=1APeak,Pulse Width≤300µs,Duty Cycle≤2%)	VTM	Typ 1.5 Max 4	V
Dynamic Holding Current	IH	Typ 50	mA
(Sine Wave,60Hz,RL=100Ω)	IH	Max 100	mA
Switching Resistance (Sine Wave,50to60Hz)	RS	0.1
Switching Resistance (Sine Wave,50to60Hz)	RS	0.1	KΩ
Critical rate of rise of on_state Current,
Critical Damped Eaveform Circuit (IPK=130Ω,Pulse Width=10μsec)	di/dt	120
			A/μS
