BYV28-200 SOD-64 sintered glass junction ultrafast avalanche rectifier diode

P/N:YZPST-BYV28-200 SINTERED GLASS JUNCTION ULTRAFAST AVALANCHE RECTIFIER VOLTAGE ：200V CURRENT: 3.5A FEATURE Glass passivated High maximum operating temperature Low leakage current Excellent stability Guaranteed avalanche energy absorption capability MECHANICAL DATA Case: SOD-64 sintered glass case Terminal: Plated axial leads solderable per MIL-STD 202E, method 208C Polarity: color band denotes cathode end Mounting position: any

Product Number: YZPST-BYV28-200

Category：

Diode

INQUIRY

Product Description

P/N:YZPST-BYV28-200

SINTERED GLASS JUNCTION

ULTRAFAST AVALANCHE RECTIFIER

VOLTAGE ：200V CURRENT: 3.5A

FEATURE

Glass passivated

High maximum operating temperature Low leakage current

Excellent stability

Guaranteed avalanche energy absorption capability

MECHANICAL DATA

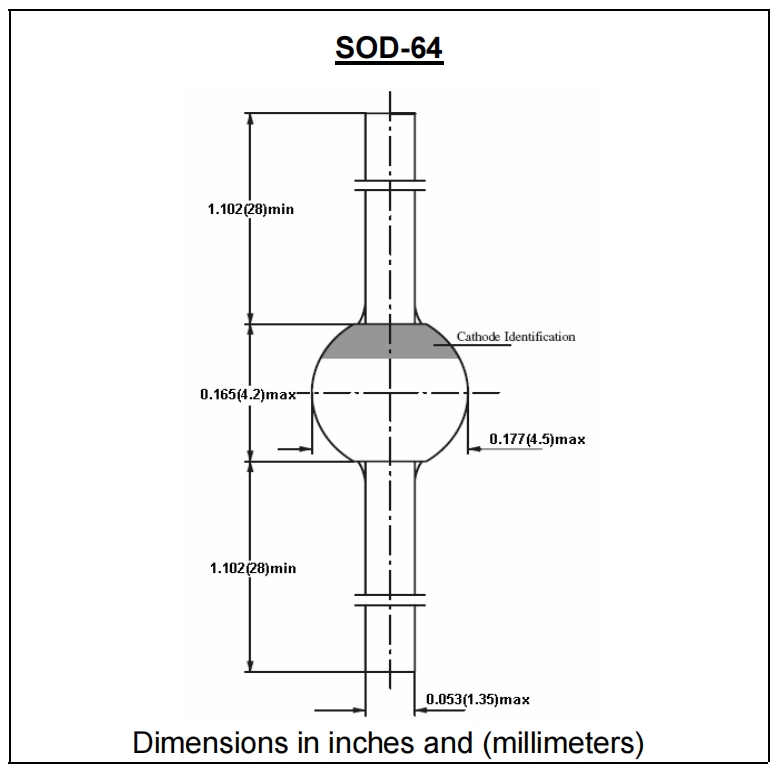

Case: SOD-64 sintered glass case

Terminal: Plated axial leads solderable per MIL-STD 202E, method 208C

Polarity: color band denotes cathode end Mounting position: any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (single-phase, half-wave, 60HZ, resistive or inductive load rating at 25。C, unless otherwise stated)
		SYMBOL	BYV28-200	units
Maximum Recurrent Peak Reverse Voltage		VRRM	200	V
Maximum RMS Voltage		VRMS	140	V
Maximum DC blocking Voltage		VDC	200	V
Reverse avalanche breakdown voltage at IR = 0.1 mA		V(BR)R	220min	V
Maximum Average Forward Rectified Current 3/8” lead length at Ttp =85。C		IFAV	3.5	A
Non-repetitive Peak Forward Current at t=10ms half sine wave		IFSM	90	A
Maximum Forward Voltage at Forward Current 3.5A		VF	1.02	V
Non-repetitive peak reverse avalanche energy (Note 1)		ERSM	20	mJ
Maximum DC Reverse Current at rated DC blocking voltage	Ta =25。C Ta =165。C	IR	5.0 150.0	μA
Maximum Reverse Recovery Time (Note 2)		Trr	25	nS
Diode Capacitance (Note 3)		Cd	190	pF
Typical Thermal Resistance (Note 4)		Rth(ja)	75	K/W
Storage and Operating Junction Temperature		Tstg, Tj	-65 to +175	。C
Note: 1. R=400mA; Tj=Tjmax prior to surge; inductive load switched off 2. Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A 3. Measured at 1.0 MHz and applied reverse voltage of 0Vdc 4. Device mounted on an epoxy-glass printed-circuit board, 1.5mm thick; thickness of Cu-layer≥40 μm
