SOD-57 sintered glass ultrafast avalanche rectifier diode

FEATURE Very low switching losses Glass passivated Low reverse current High reverse voltage Hermetically sealed package MECHANICAL DATA Case:SOD-57 sintered glass case Terminal:Plated axial leads solderable per J-STD-002 Polarity:color band denotes cathode end Mounting position:any

Product Number: YZPST-SR3KV

Category：

Diode

INQUIRY

Product Description

ULTRAFAST AVALANCHE RECTIFIER

VOLTAGE:3000V CURRENT:0.25A

FEATURE

Very low switching losses

Glass passivated

Low reverse current

High reverse voltage

Hermetically sealed package

MECHANICAL DATA

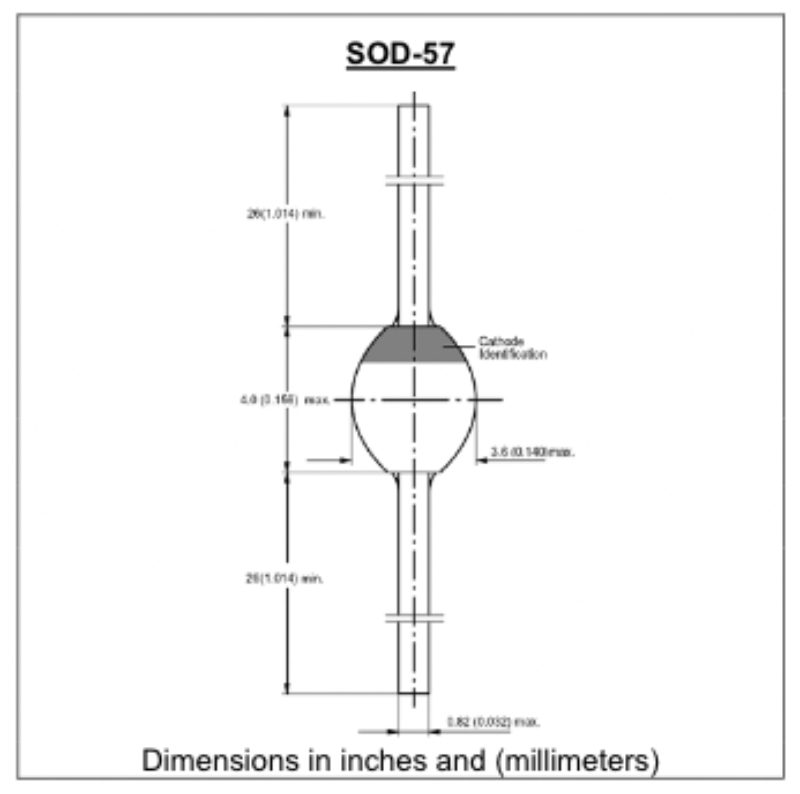

Case:SOD-57 sintered glass case

Terminal:Plated axial leads solderable per J-STD-002

Polarity:color band denotes cathode end

Mounting position:any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (single-phase,half-wave,60HZ,resistive or inductive load rating at 25°C,unless otherwise stated)
		Symbol	SR3KV	units
Maximum Recurrent Peak Reverse Voltage		VRRM	3000	V
Maximum RMSVoltage		VRMs	2100	V
Maximum DC blocking Voltage		VDC	3000	V
Minimum ReverseBreakdown Voltage IR=100μA		V(BR)R	3100	V
Average ForwardRectified Current half-sinewave		IFAV	0.25	A
Peak Forward Surge Current 10ms half sine-wave		lFSM	15	A
Maximum Forward Voltage at 0.25A		VF	5.0	V
Non-repetitive peak reverse avalanche energy at leRR)=0.2A		ER	5.0
Maximum DC Reverse Current at rated DC blocking voltage	Tj=25℃ Tj=125℃	lR	10.0 100.0	μA
Maximum Reverse Recovery Time (Note1)		Trr	250	nS
Typical Thermal Resistance (Note 2)		Rth(ja) Rth(jc)	45 25	℃/W
Typical Junction Capacitance (Note 3)		Cj	10.5	pF
Storage and Operating Junction Temperature		Tstg,Tj	-55to+175	℃
Note: 1.Reverse Recovery Condition If=0.5A,Ir=1.0A,Irr =0.25A 2.Lead length I=10mm,TL=constant 3.Measured at 1.0 MHz and applied Vr=4.0V

Min	3000.00				Min
Max		10	5	250	Max
Condition	IR	VRRM	IF		Condition
Bin1@	100 μA	3000 V	0.25 A	If = 0.5A, Ir =1.0A, I rr =0.25A	Bin1@
Item	VRRM(V)	IR( μA)	VF(V)	TRR(ns)	Item
1	3889	0.198	2.281	115
2	3867	0.097	2.179	126
3	3866	0.316	2.172	120
4	3974	0.18	2.18	124
5	3883	0.202	2.21	123
6	3813	0.189	2.201	122
7	3747	0.164	2.252	112
8	3958	0.184	2.418	112
9	3851	0.111	2.137	125
10	3818	0.115	2.202	116
11	3991	0.125	2.231	122
12	3735	0.184	2.629	96
13	3913	1.104	2.239	118
14	3932	0.128	2.461	106
15	3899	0.11	2.203	122
Min	3735	0.097	2.137	96
Max	3991	1.104	2.629	126
Avg	3875.733	0.227133	2.26633	117.2667
