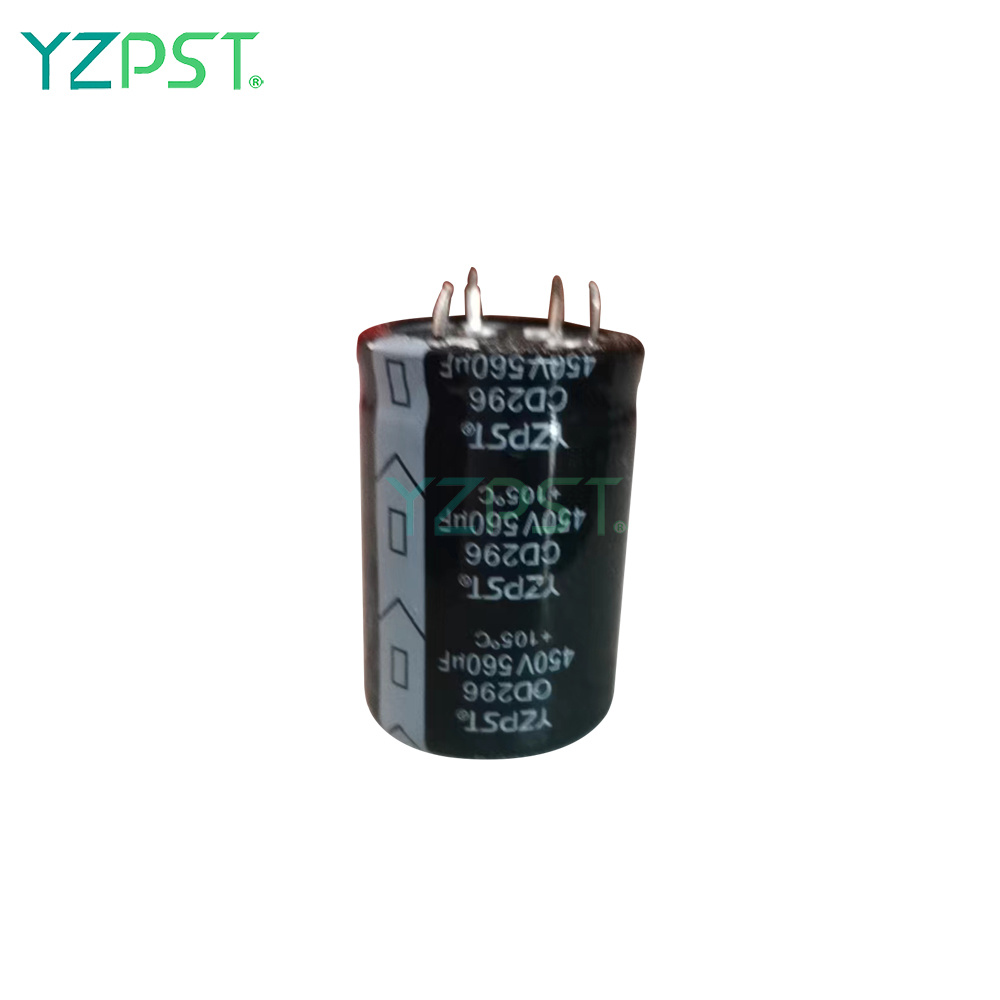

CD296 High ripple current Large Can Type Large electrolytic capacitor
Large Can Type
YZPST-CD296
High ripple current,Smaller size,Load life of 3000 hours at 105℃,
equal to 96000 hours (11 years)at 55℃ .
Used in PCB Mounting

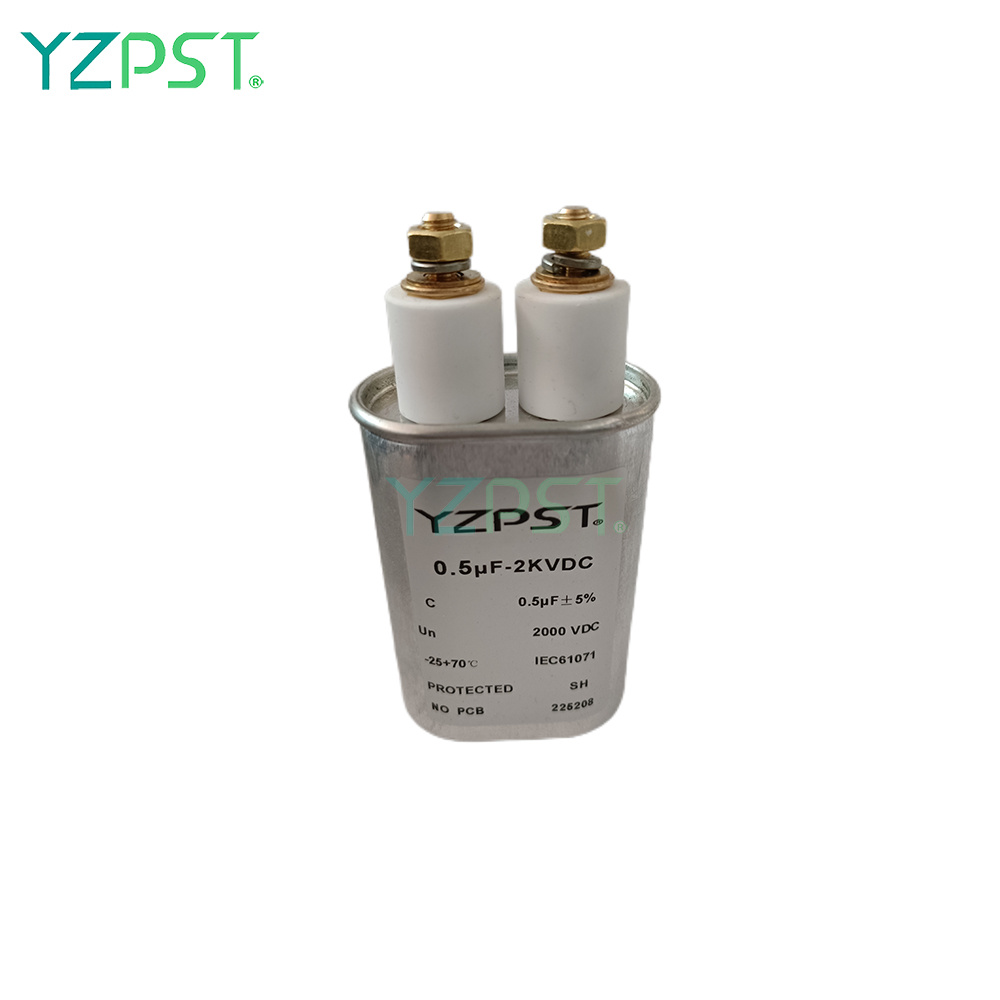

2000VDC 0.5uF damping and absorption Snubber capacitor
2000VDC 0.5μF damping and absorption Snubber capacitor
YZPST-BTA41-1200B
Hot selling MKMJ 160KVdc 0.2UF Capacitor

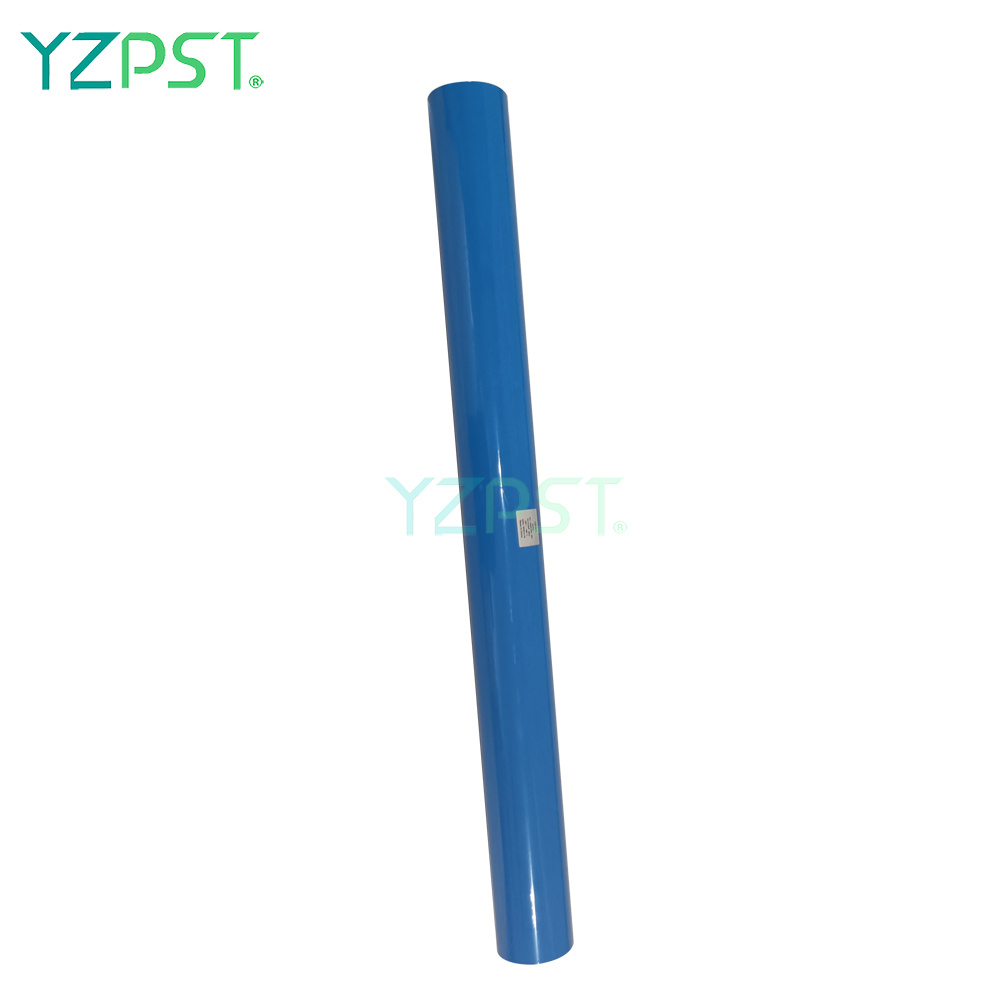

Capacitor YZPST-MKMJ-150KVDC-0.2UF
Technical performance indicators:
1.Rated voltage: 150 KVdc
2.Nominal capacity: 0.2 uF
3.Allowable deviation of electrical capacity: ± 5%
4.Insulation resistance: 10,000 MΩ (1,000 Vdc, 1min)
5.Loss angle shear value: 0.0020 (1000Hz)
6. Interpole pressure resistance: 180KVdc 10s
7.Release peak current: 4.6 KA
8.Maximum effective current: 33A
9.Size:Φ110*1200, see the left figure for details
10.Packaging method: cylindrical insulation shell, dry packaging
11. Lead method: 2-M8 copper nut

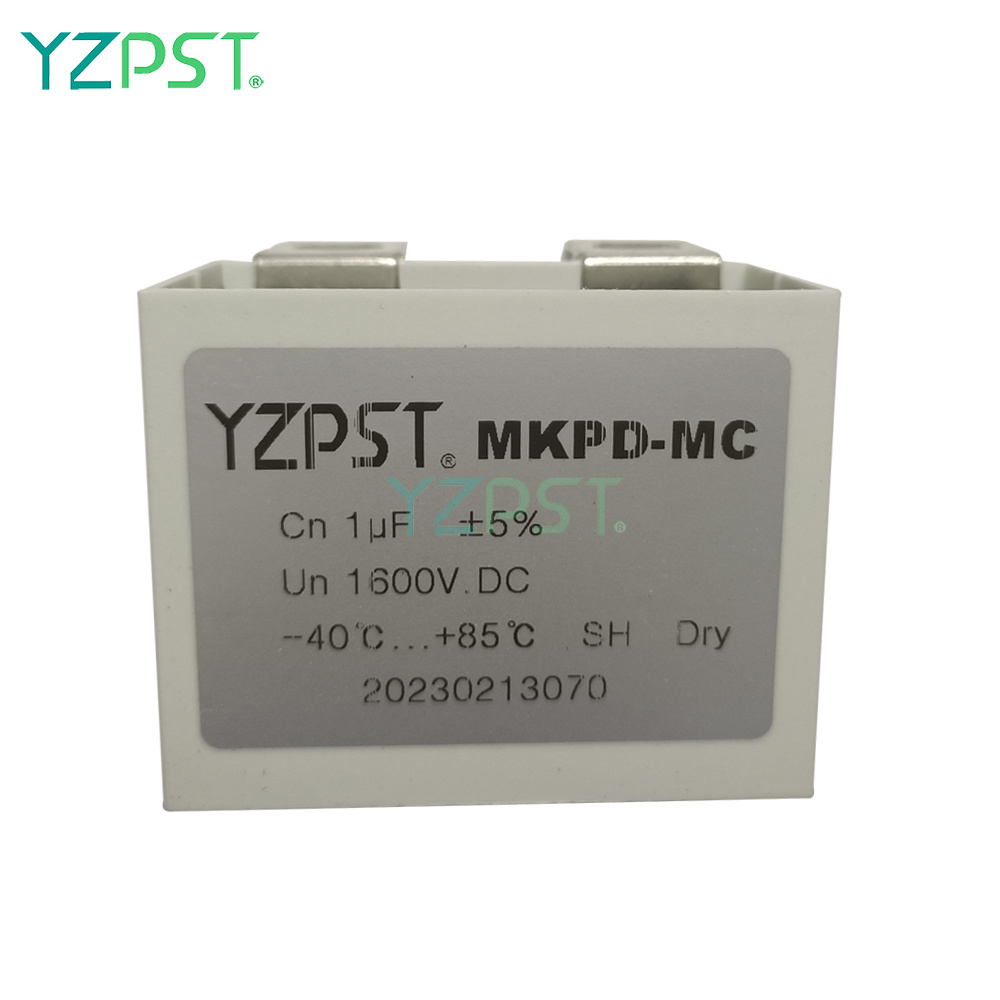

1uF IGBT buffer absorption capacitor 32.5mm
1uF IGBT buffer absorption capacitor P=32.5mm
IGBT buffer absorption capacitor
Rated capacitance ( CN ):1μF
Rated voltage(UN ):1600V.dc
Surge voltage(US ):2400V t<100ms

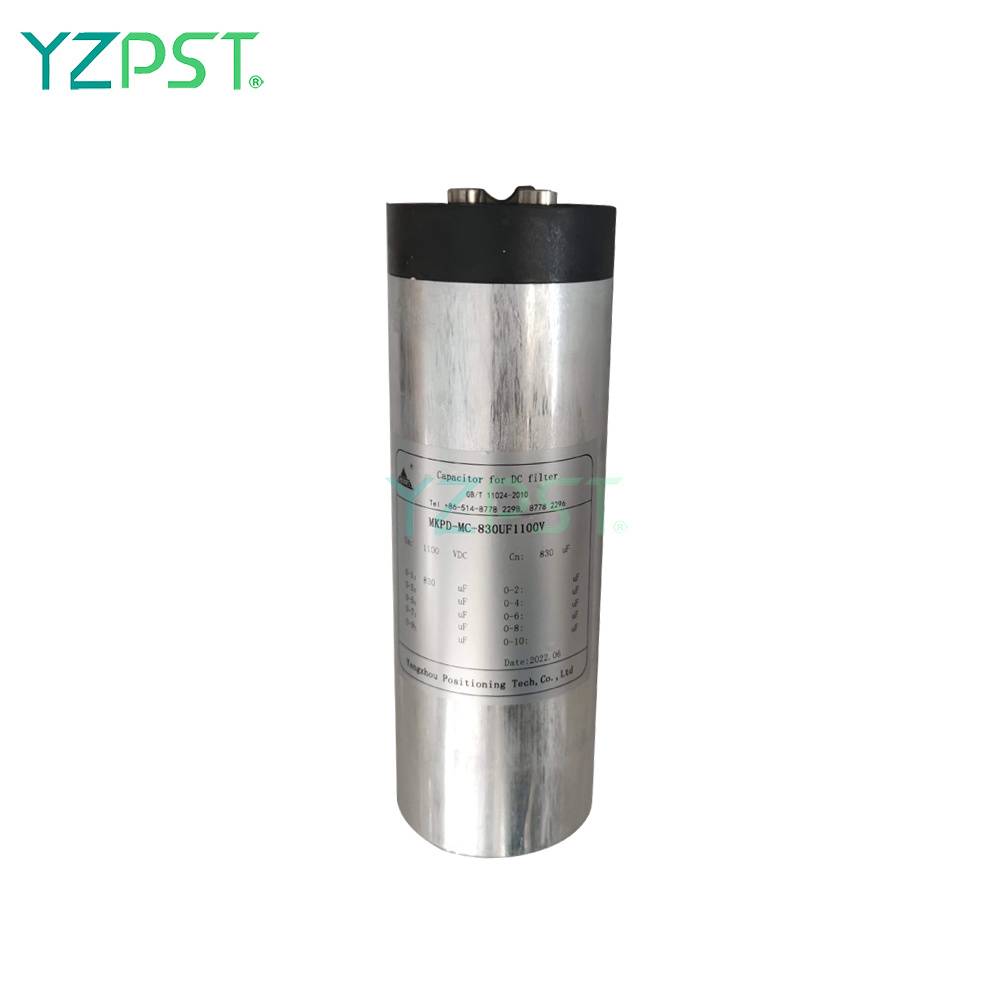

High Energy Density Polypropylene 1100V.dc DC Link Capacitors
DC - Link Capacitor
MKPD- MC 830μF 1100V .dc
Polypropylene, High Energy Density, DC Link Capacitors
High Current, High Capacitance for Inverter Applications

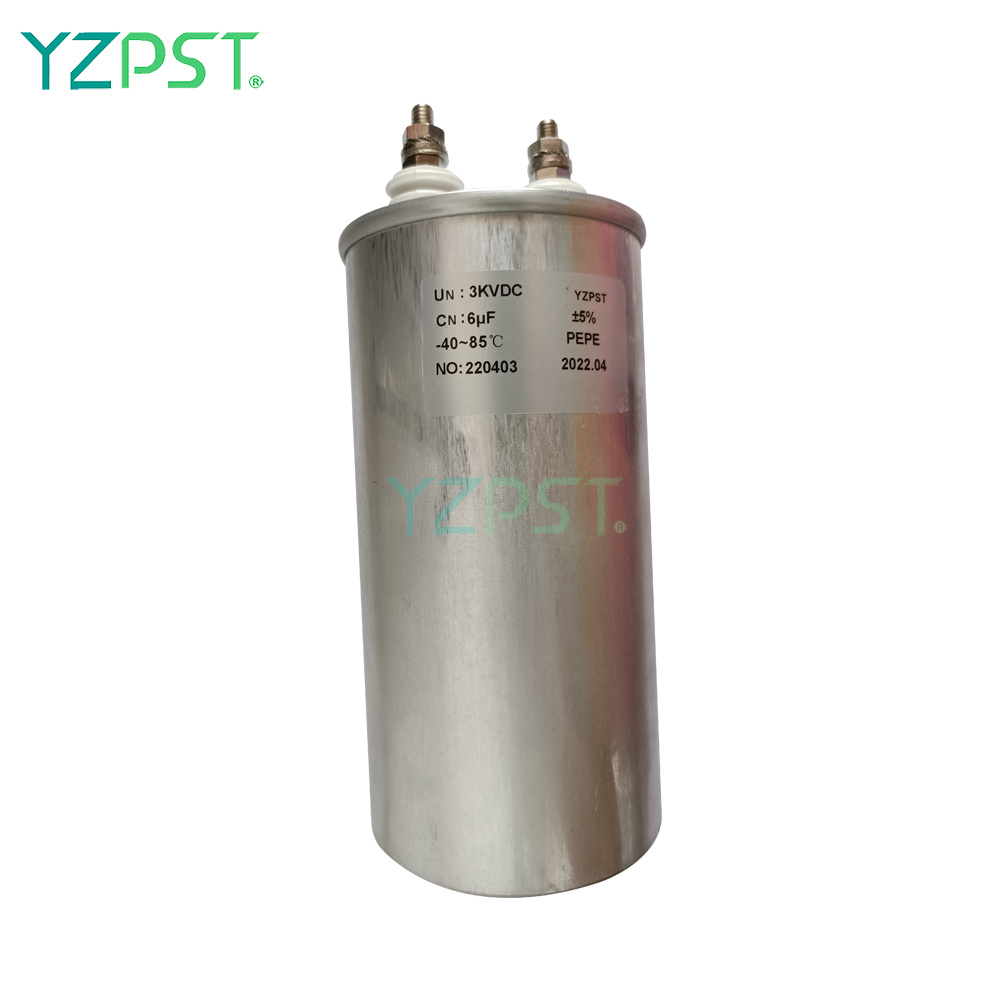

Hot selling 3kVDC Damping and absorption capacitor
Damping and absorption capacitor
YZPST-3KVDC-6uF
high security 0.25uF damping and absorption capacitor
Damping and absorption capacitor
YZPST-2kVDC-0.25μF
1.Product Usage
This product is mainly used to semi-conduct switching ,protection, filter and storage energy in the power electrical device.
2.Product features
2.1Features: The capacitor contains high-quality polypropylene film and low temperature insulation impregnant, none PCB. Electrodes are made of special aluminum foil for electronic; Adopt non-inductive roll artwork. Bear transient heavy current and HV impulse without capacitance loss. low dissipation,well sealed, good heat dissipation, long life-time, anti-explosion and high security.
2.2Appearance: Frosted aluminium oxide housing,good look. The features of anti-corrosive PET label, no peel-off, no color fading, small size, light weight, and easy installation and etc.
3.Technical parameter
3.1Main parameter
3.1Under natural air to cool down: The maximum temperature of the operating capacitor housing is 70℃
3.2Elevation:≤1000m
3.3Relative humidity:≤95%
3.4Rated Voltage:UN=2kVDC
3.5fundamental frequency:50Hz
3.6rated capacity:CN=0.25μF
3.7Capacity Tolerance within ±10%
3.8Tangent of the loss angle of a capacitor tanδ(1kHz)≤0.0005
3.9Insulation resistance: RC≥3000S
3.10Terminal test voltage:UTTDC=4kVDC, 10S
3.11Voltage between terminal and housing:UTTDC=5kVDC,10S
3.12Housing: Cylindrical aluminum housing
3.13Sealing test: No leakage in 4 hours under rated temperature of 75℃±5℃
3.14Discharge test between terminals: 1.1Nvoltage,10s bear 20 times DCcharging and discharging in polarity, Without breakdown and capacitance loss.

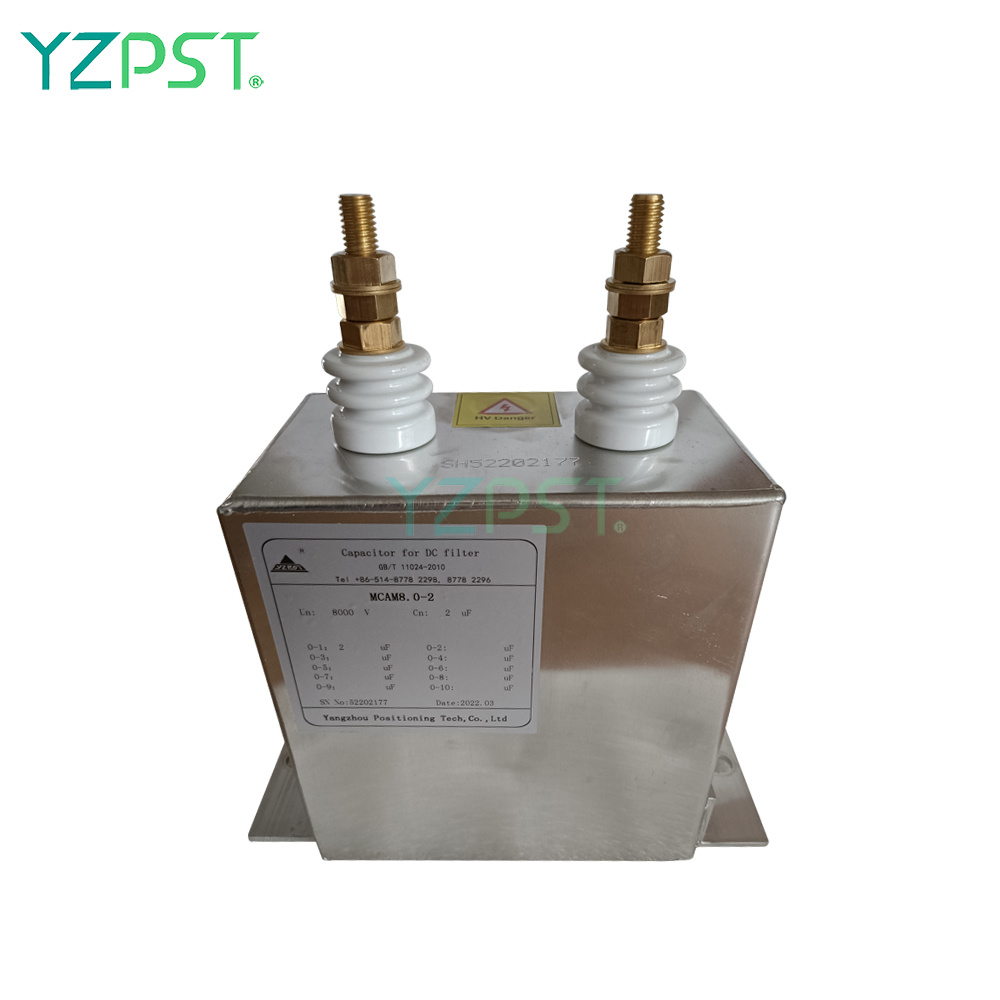

Quality MCAM8.0-2uf Capacitor
Quality MCAM8.0-2uf Capacitor

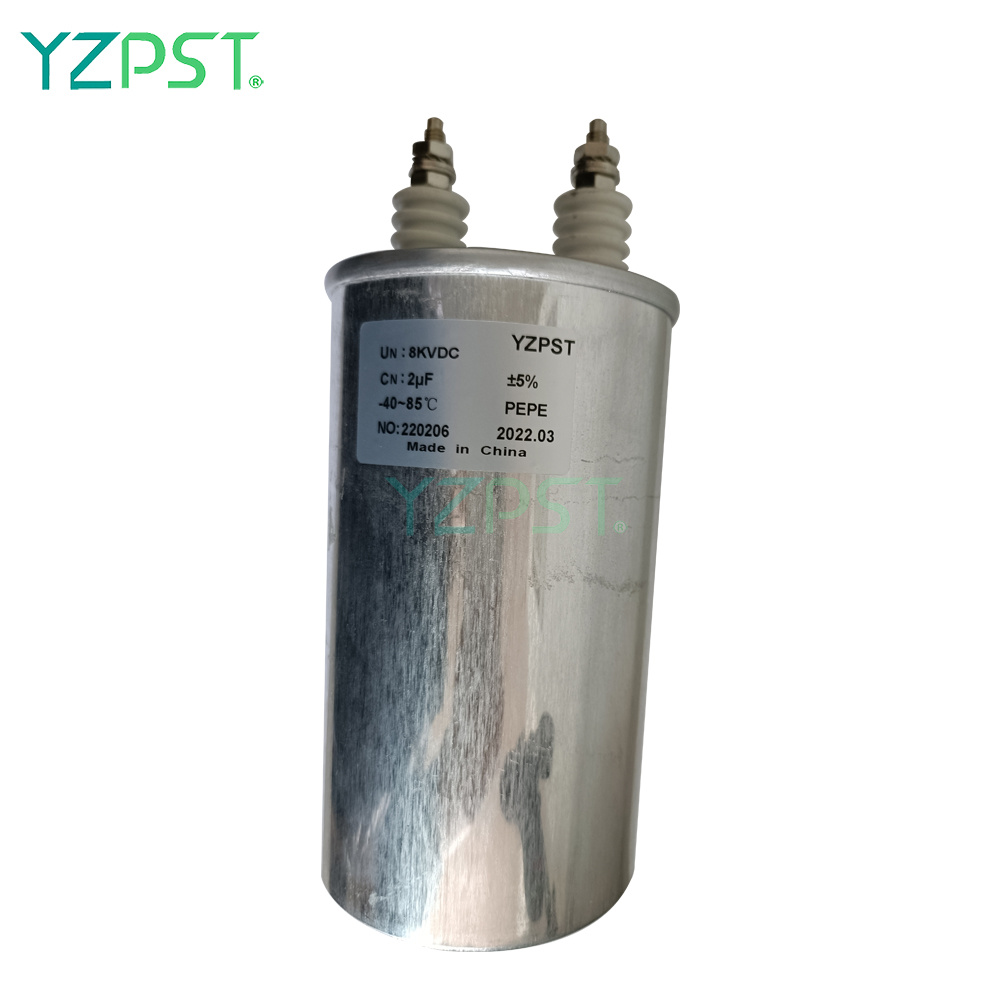

2uF High Voltage Discharge Capacitor
Type:YZPST-2.0 µ F8000VDC
High Voltage Discharge Capacitor technical index

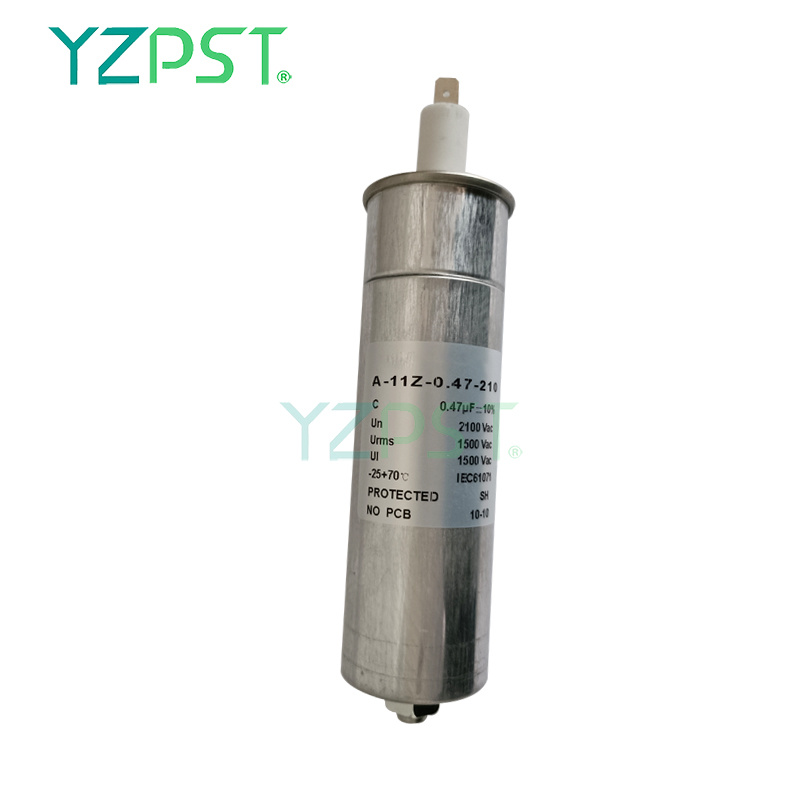

Hot selling 2100VAC Film capacitor
2100VAC Film capacitor
Cylinder aluminum can oil type AC filter capacitor
Features
Particularly suit for AC filter circuit in power electric
equipment and UPS power unit. Can withstand high Harmonic current, peak current and peak voltage
Over-pressure safety protection device
Excellent self-healing property
High stability and reliability
Induction heating parts Anti-Jamming RC Arc Extinguisher
Anti-Jamming RC Arc Extinguisher
Induction heating parts
YZPST-302327PP
That is three terminal device.. In center terminal we are connecting each phase 230 AC volt and other two derminal we are connecting parallel with DC VOLT 500VOLT
C56 DC support/coupling 100uF filter capacitor
C56 DC support/coupling, filter capacitor
YZPST-C56112107JFM6-02
Characteristics
Polypropylene film dielectric
Plastic shell packaging, dry resin perfusion
Copper nut /screw elicited,Large capacity,small size,Easy installation.
High ripple current, high dV/dt withstand capacity
Esistance to high voltage,with self-healing.
Application
Widely used in of DC-link ciruit for energy storage.
Can replace electrolytic capacitors, better performance and longer life.
PV inverter, wind power converter, All kinds of frequency converter and inverter power supply;
Pure electric and hybrid cars; SVG, SVC devices and other kinds of power quality management.
Technical Data
Reference Standards
GB/T 17702 IEC 61071
Operating Temperature Range
-40℃~+85℃,Top max:+105℃
Capacitance Range
150μF
Rated Voltage
700VDC
Capacity Tolerance
±5%(J); ±10%(K)
Test Voltage between electrodes
1.5UN(DC)60S 20℃
Test Voltage between electrode and case
1000+2×UN/(VAC) 50Hz 60S (min 3000VAC)
Dissipation Factor
tgδ≤2×10-3 at 20℃ 100Hz
Insulation Resistance
C·R≥5000S,at 20℃ 100VDC 60S
Life Expectancy
100000hrs ( Un θhotspot ≤ 70℃)
Overvoltage Operation
1.1×UN
30% of on-load-dur.
1.15×UN
30 min/day
1.2×UN
5 min/day
1.3×UN
1min/day
1.5×UN
100ms every time, no more than 1000 times during the lifetime
Product Shape and Reference Size
Article Table
Part Number
CAP
μF
Dimension(mm)
dv/dt
(V/μs)
Ipeak
(A)
Irms
@100KHz50℃
(A)
ESL
(nH)
ESR
@10KHz20℃
(mΩ)
Output
H
D
YZPST-C56112107JFM6-02
100
65
85
35
3500
70
<40
1.3
M6
C53 DC-Link/Coupling and filtering capacitor
C53 DC-Link/Coupling and filtering capacitor
Type: YZPST-C53801106JFG01M6-01
Technical data
Product name
C53 DC-Link/Coupling and filtering capacitor
Characteristics
Can withstand high ripple current, high stability, low loss and with self-healing.
Application
Can be used in commercial induction cooker, inverter power supply, welding machine power supply, as a filtering and DC-Link.
Encapsulation
Tape with flame retardant epoxy package
Tin-plated copper nut as the lead electrode
Structure
Metallized film dry construction
Reference standards
GB/T 17702(IEC 61071)
Operating Temperature range
-40℃~+85℃
Capacitance
10μF
Capacity tolerance
±5%
Rated voltage
800VDC
Test voltage
1.5UN 10s(25℃)
dv/dt(V/µs)
80V/µs
Dissipation Factor
tgδ≤20×10-4 100Hz
Insulation resistance
(Testing Voltage)100VDC C·R≥5000s
Dimension
Φ42×34
Life expectancy
200 000(hours)
(Rated voltage UR 70℃)
1
800VDC
10uF
42
34
7
Code
Current
Capacity
ΦD
H
L
Specification
Dimension
Leading
High-frequency current capacity C46 Resonant capacitor 4uF
Resonant capacitor
Type:YZPST-C46401405JFG01M8-02A
Characteristics
PET tape wrapping, epoxy resin sealing
Tin plated copper nut or copper strip leads
High-frequency current capacity
Low ESL and ESR
High pulse current, high dV/dt, high stability,self healing
Application
Widely used in series circuits or parallel resonant circuits of power electronic devices.
Welding power supplies, induction heating equipment in resonance occasions.
