Hot selling MKMJ 160KVdc 0.2UF Capacitor

Capacitor YZPST-MKMJ-150KVDC-0.2UF Technical performance indicators: 1.Rated voltage: 150 KVdc 2.Nominal capacity: 0.2 uF 3.Allowable deviation of electrical capacity: ± 5% 4.Insulation resistance: 10,000 MΩ (1,000 Vdc, 1min) 5.Loss angle shear value: 0.0020 (1000Hz) 6. Interpole pressure resistance: 180KVdc 10s 7.Release peak current: 4.6 KA 8.Maximum effective current: 33A 9.Size:Φ110*1200, see the left figure for details 10.Packaging method: cylindrical insulation shell, dry packaging 11. Lead method: 2-M8 copper nut

Product Number: YZPST-MKMJ-160KVDC-0.2UF

Category：

Capacitors

INQUIRY

Product Description

Capacitor YZPST-MKMJ-160KVDC-0.2UF

Technical performance indicators:

1.Rated voltage: 160 KVdc

2.Nominal capacity: 0.2 uF

3.Allowable deviation of electrical capacity: ± 5%

4.Insulation resistance: 10,000 MΩ (1,000 Vdc, 1min)

5.Loss angle shear value: 0.0020 (1000Hz)

6. Interpole pressure resistance: 180KVdc 10s

7.Release peak current: 4.6 KA

8.Maximum effective current: 33A

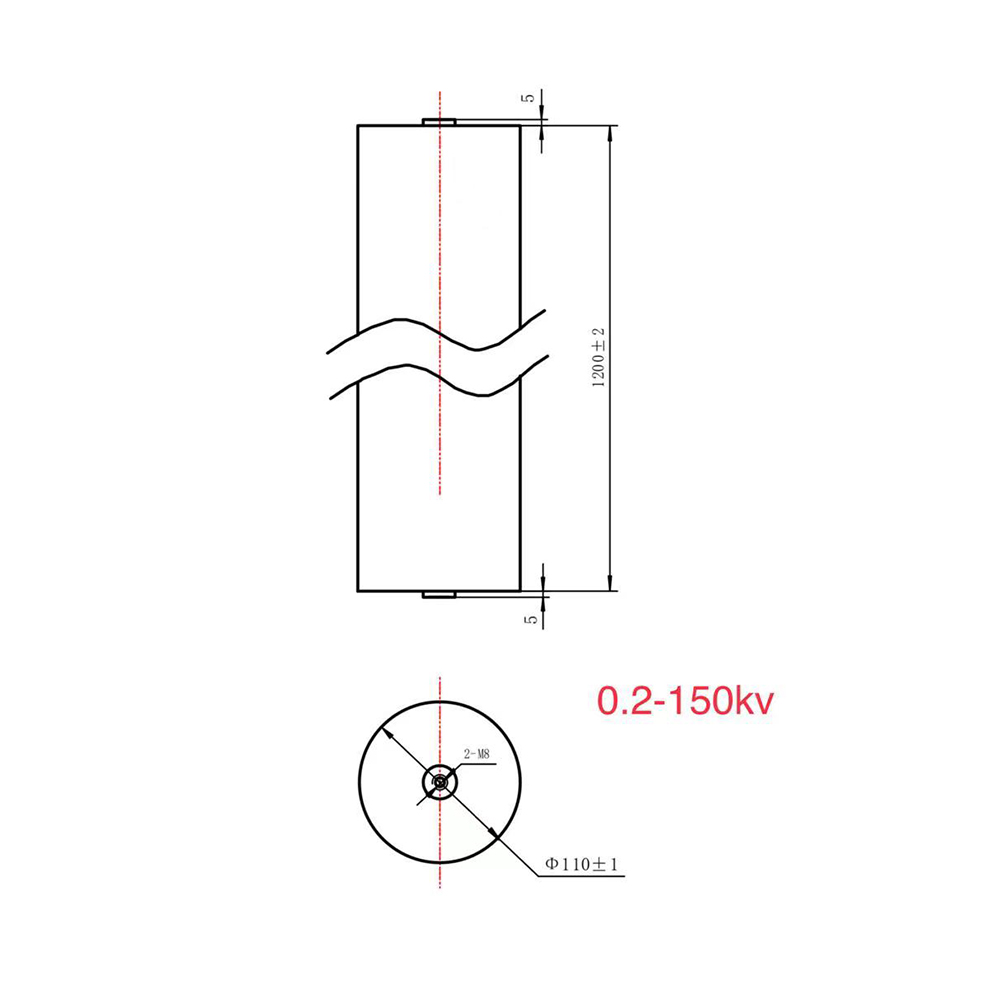

9.Size:Φ110*1200, see the left figure for details

10.Packaging method: cylindrical insulation shell, dry packaging

11. Lead method: 2-M8 copper nut

Dimensions:
