High Energy Density Polypropylene 1100V.dc DC Link Capacitors
- Product Description
-
DC - Link Capacitor
MKPD- MC 830μF 1100V .dc
Polypropylene, High Energy Density, DC Link Capacitors
High Current, High Capacitance for Inverter ApplicationsSpecifications
Reference standards
IEC 61071
Rated capacitance (CN )
830μF
Capacitance tolerance
± 5%
Rated voltage(U N )
1100V.dc
Surge voltage(US )
1650V t<100ms
Over voltage
1 . 1UN 8h/day
1 . 15UN 30min/day
1 . 2UN 5min/day
1 . 3UN 1min/day
Max . current(Imax )
60A
Max . peak current(Ipea k )
4 .8kA
Dielectric dissipation factor(tanδ0 )
2×10- 4
Series resistance(Rs )
1 . 7mΩ(1kHz)
Self- inductance(Ls )
60nH
Expected lifetime
100000h
Failure rate
50 FIT
Test data
Test voltage between terminals(UT-T )
1 . 5UN/10s
Test voltage between terminals to case(UT- C )
4000V.ac/10s
Dissipation factor(tanδ)
≤1×10- 3 (100Hz)
Insulation resistance(IR×CN )
≥ 5000s(20°C, 100V, 1min)
Environmental data
Operating temperature
-40°C ~ +85°C
Storage temperature
-40°C ~ +85°C
Climatic category
40/85/21
Cooling
Natural cooling
Max . altitude
2000m
Construction data
Dielectric
Polypropylene film
Case
Aluminium can
Internal stuffing
Resin
IP grade
IP00
Max . torque(mounting bolt)
M12:10Nm
Max . torque(terminals)
M6:6Nm
Mounting position
Vertical
Electric distance
17mm
Discharge resistance
-

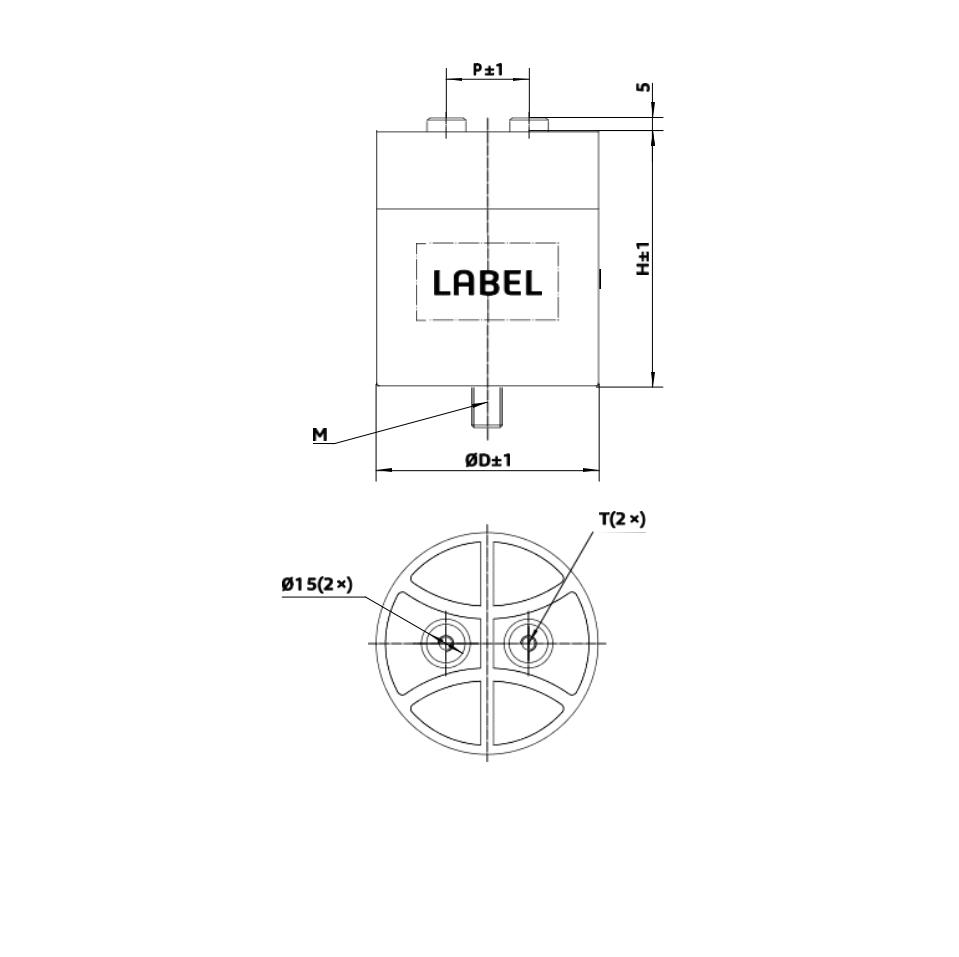

Outline drawing
Diameter(ΦD)
86mm
Height(H)
253mm
Center distance(P)
32mm
Mounting bolt(M)
M12× 16
Terminals(T )
M6×10
