LED lightning arrester YZPST-LED5B
Brief Introduction to product
This product is used for lightning and surge pulse protection of LED lamps.Due to the LED lamps for the core of the device is a semiconductor diode, it can be extremely low or even overvoltage, 5-6V is enough to destroy the lamp beads,so it is necessary to select a special lightning protector to protect the power supply line of the LED from overvoltage and avoid the situation of large-area of LED lamps and black lights in the same area caused by lightning strikes,the developed product of our company has the following characteristics :
1.This product is in parallel,which can timely diagnose working state of the lightning protection and change in time to protect the lamps.
2.It has large absorption capacity for surge, low output residual voltage, small volume, optional waterproof structure, and easy installation.
Technical Parameters List
Model
YZPST-LED10B
YZPST-LED20B
YZPST-LED5B
Nominal working voltage Un
110/220/277V
110/220/277V
220V
Maximum continuous working voltage Uc
150/275/320V
150/275/320V
275V
Withstand impact voltage Uoc
10KV
20KV
6KV
Nominal discharge current In （8/20μs）
5KA
10KA
2.5KA
Maximum discharging current Imax（8/20μs）
10KA
20KA
5KA
Voltage protection level Up
1KV
1.5KV
0.7KV
Drain currrent Ir
﹤5μA

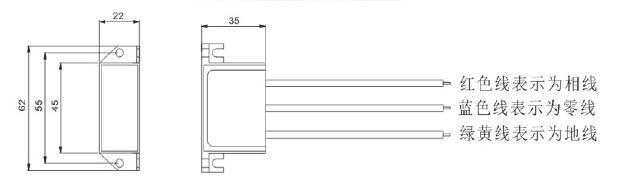

External dimension
62*22*35mm
Response time Ta
≤25ns
Operating temperature range Tup
-40℃to +70℃
Water-proof function
Optional
Protection grade
IP67
Sheathing material
Flame retardant thermoplastic material
Interface mode
Terminals
Mode of connection
Connection in parallel
Fault indication
Optional
Installation method
1） When the voltage parameters of the protector does not match the equipment operating parameter,it may affect the work of circuit. It is recommended to determine the device operating voltage when selecting.
2) Plug the power phase line (L) and null line (N)into corresponding connector of the electric surge protector and make sure it's firm and reliable. Connect the ground terminal of arrester with the ground lead of lightning protection appropriately (recommended earth resistance ≤4Ω).
