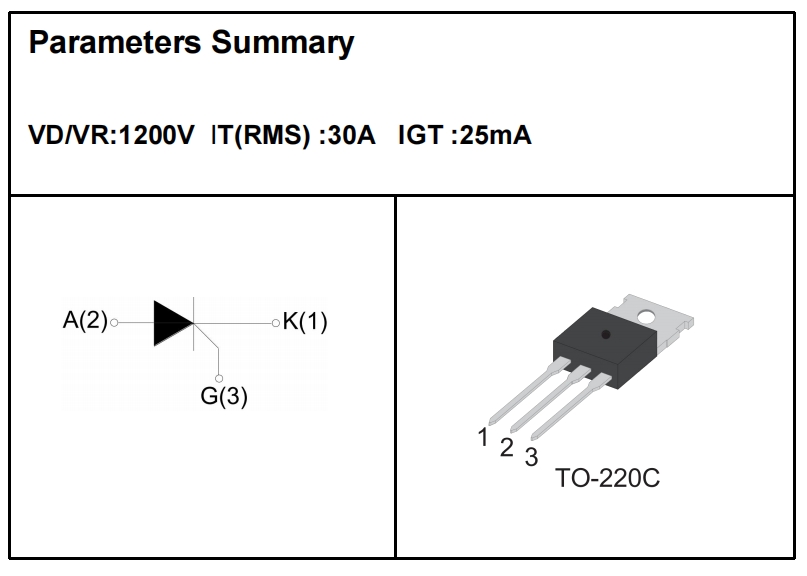

High voltage capacity TO-220 YZPST-S3025-12C 30A SCR
- Product Description
-
P/N: YZPST-S3025 30A SCRsFEATURESHigh thermal cycling performanceHigh voltage capacityVery high current surge capabilityAPPLICATIONSLine rectifying 50/60 HzSoftstart AC motor controlDC Motor controlPower converterAC power controlLighting and temperature control
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Value
Unit
Storage junction temperature range
Tstg
-40 ~ 150
℃
Operating junction temperature range
Tj
-40~ 125
℃
Repetitive peak off-state voltage (T =25℃)
VDRM
1200
V
Repetitive peak reverse voltage (T =25℃)
VRRM
1200
V
Non repetitive surge peak Off-state voltage
VDSM
VDRM +100
V
Non repetitive peak reverse voltage
VRSM
VRRM +100
V
RMS on-state current
IT(RMS)
30
A
Non repetitive surge peak on-state current
(180° conduction angle, F=50Hz)
ITSM
300
A
Average on-state current (180° conduction angle)
IT(AV)
19
A
I2t value for fusing (tp= 10ms)
I2t
450
A2 S
Critical rate of rise of on-state current
(I =2×IGT, tr ≤ 100 ns)
dI/dt
50
A/μS
Peak gate current
IGM
4
A
Average gate power dissipation
PG(AV)
1
W
Thermal Resistances
Symbol
Parameter
Value
Unit
Rth(j-c)
Junction to case
0.80
℃/W
Rth(j-a)
junction to ambient
60
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
Symbol
Test Condition
Value
Unit
IGT
VD = 12V
MAX.
25
mA
VGT
MAX.
1.3
V
VGD
VD=VDRM Tj=125℃
MIN.
0.2
V
IL
IG= 1.2IGT
MAX.
180
mA
IH
IT=500mA
MAX.
120
mA
dV/dt
VD=2/3VDRM Gate Open Tj=125℃
MIN.
500
V/μs

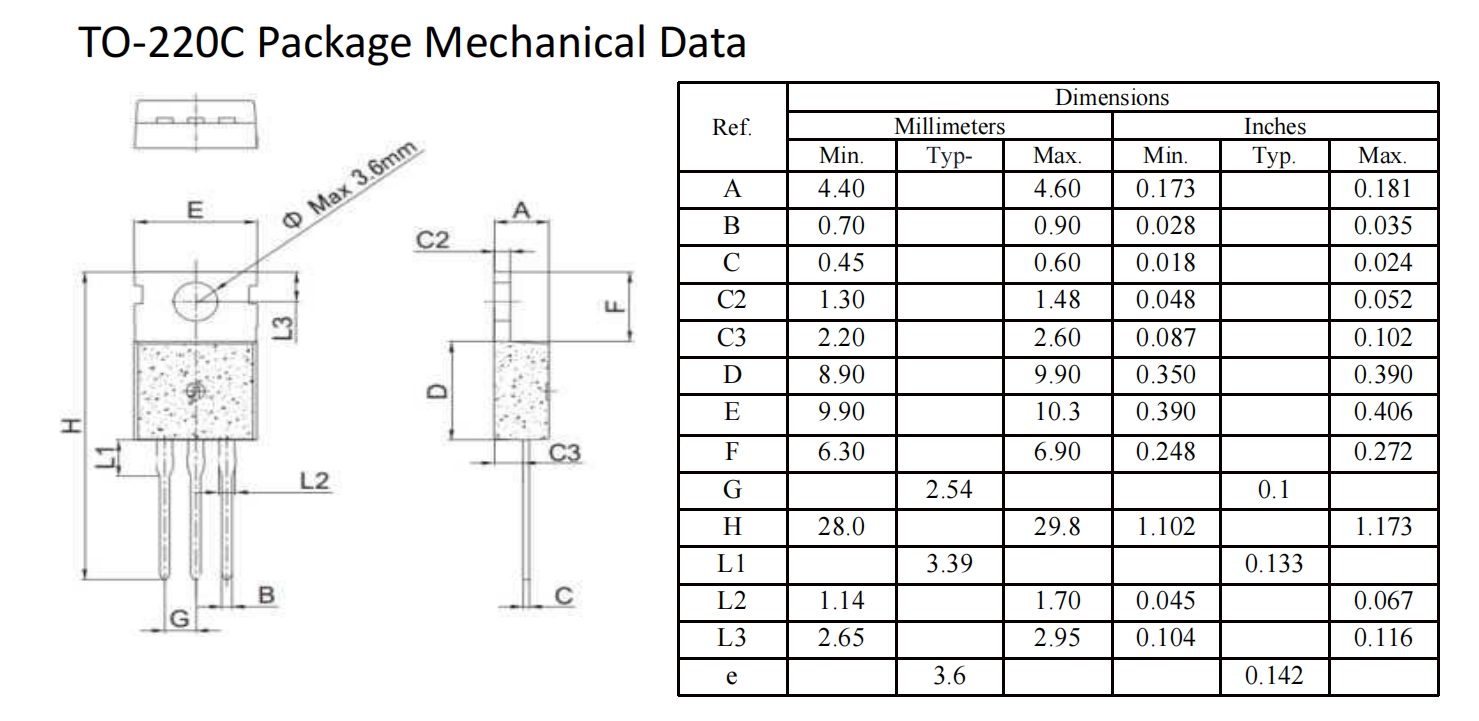

TO-220C Package Mechanical Data
