High lrms rating Heavy-Duty AC filter capacitor YZPST-FFC3SY 850-55.8-S
- Product Description
-
Heavy-Duty AC filter capacitorYZPST-FFC3SY 850-55.8-SProduct FeaturesHigh lrms rating/ High lpeak ratingLow self-inductanceHigh reliability and long life expectancyDesign of metallized polypropylene film with self-healing propertyNon-polarTechnical parameters
Type testNo.
Test Item
Requirements
Test standard and condition
1
Vibration
No visible damage
f=10～55Hz ；a=±0.35mm
f=10～55Hz ；a=±0.35mm
Test duration per axis = 10 frequency cycles (3 axes offset from each other by 90°) , 1 octave/min
2
Environmental
No visible damage
Δ C/C≤±1% ，tgδ≤ 1.2×tanδ0+1×10‐4 (100Hz)
θA =‐40℃, θ B =+85℃ 5cycles
Duration: 2 hours, switchine period≤3min
3
Thermal stability
C ：（ 100 Hz ） Δ C /C0≤±0.5%
tanδ（ 100 Hz ） tanδ≤ 1.2× tanδ0+1×10‐4
Δ C/C < ±0.5% ，
tanδ≤ 1.2×tgδ0+1×10‐4
at 100Hz
Test temperature ：normal temperature
Applied current ：1Irms
Frequency ：10KHz
Duration: ≥8h
During the last 1 hour, the case temperature shall be measured at least 4 times; throughout this period of 1 hour, the temperature rise shall not increase by more than 1 K.
4
Damp heat,
Steady state
）
No visible damage Δ C/C≤±5%
tanδ≤ 1.2×tanδ0+1×10‐4 RC≥ RC0 * 50%
at 100Hz
Temperature: 40℃±2℃ Humidity:80%～85%RH
Duration: 66 days
5
Endurance
Δ C/C≦±3%
tanδ≤ 1.2×tanδ0+1×10‐4
Apply 1.35Un, 70℃, running 250hours; discharge by 1.4Ip, 1000 times; Apply 1.35Un, 70℃, running 250hours

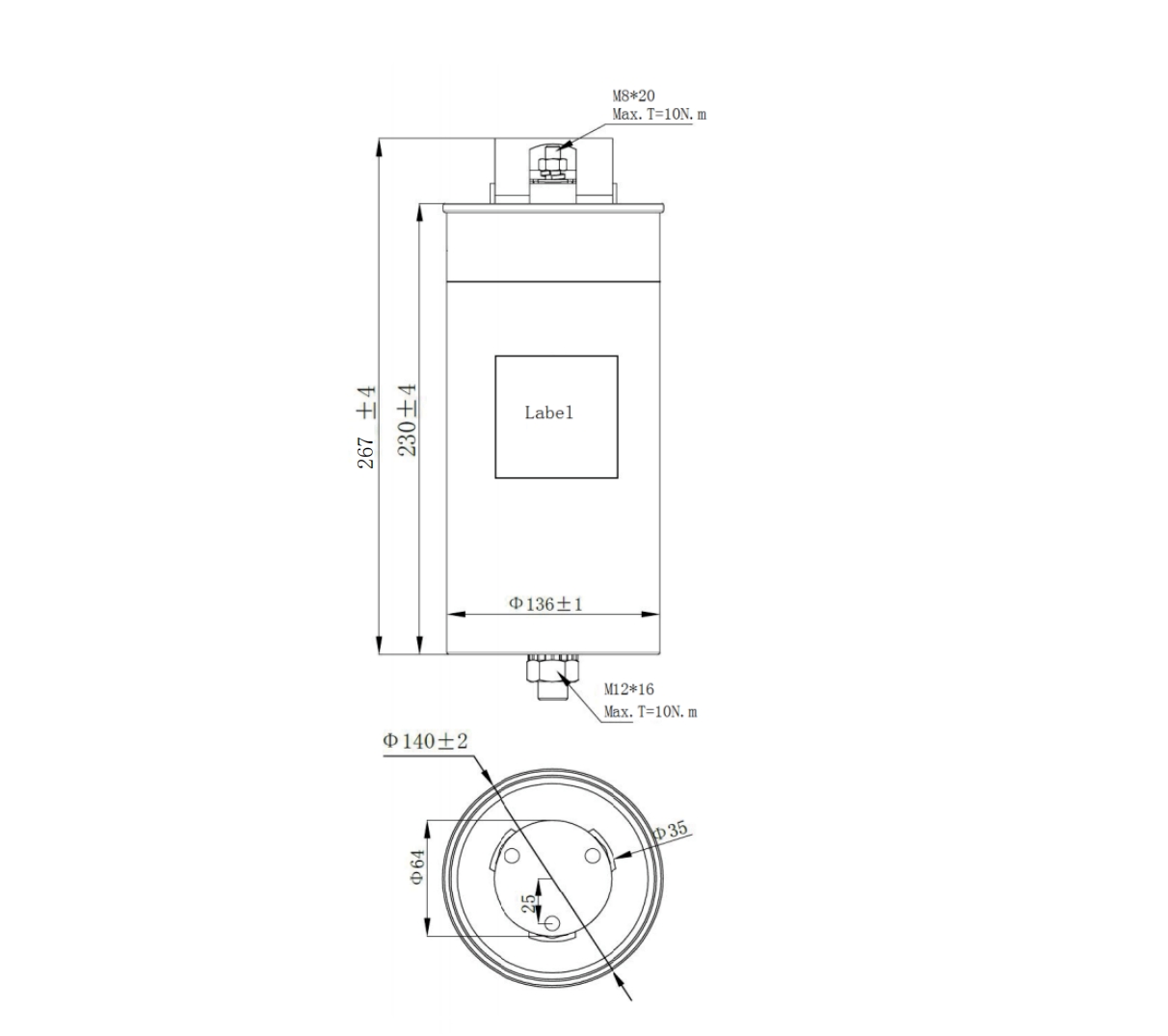

Product outline drawing
