Non-inductive construction MKPH 0.33uF 630VAC capacitor

FEATURE: Non-inductive construction and self-healing Withstanding over-voltage stressing. Super physical and environmental characteristics. APPLICATION: IGBT IGBT Snubber Widely used in power electronic devices in series/parallel resonant circuit; Widely used in power electronic equipment when the peak voltage,peak current Absorption protection; MARKING: YZPST

Product Number: YZPST-MKPH630VAC

Category：

Capacitors

INQUIRY

Product Description

YZPST-MKPH630VAC capacitor

SPECIFIC REFERENCE DATA

DESCRIPTION		VALUE		TEST CONDITIONS
Capacit ance	Rated Capacitance	0.33uF		Measuring frequency: 1kHz±10% Measuring voltage: 1Vrms.
	Capacitance olerance	J=±5%
Voltage	Rated voltage	630VAC		1.61.4UR Unit:VDC (5 S at 20℃)
	Voltage proof
Dissipation factor (tangent of loss)		DF≤0. 1% 1KHz 1V DF≤0.2% 10KHz 1V		Measuring frequency:1kHz±10% Measuring voltage: 1Vrms.
Insulation resistance		C≤0.33uF C＞0.33uF	IR≥30000M Ω IR*C≥5000S	measured at rated voltage or less than 100VDC 1 minute at 20℃ and RH≤65%
（Ut-t）		1.6*U		Unit:VDC (10 S at 20℃)
（Ut-c）		3000VDC		Unit:VAC (60S at 20℃)

		≤100fit
		<2000M
Climatic catalogue		40/85/21
Reference standard		IEC61071 GB/T17702
（Irms）		20A		70℃

FEATURE:

Non-inductive construction and self-healing

Withstanding over-voltage stressing.

Super physical and environmental characteristics.

APPLICATION:

IGBT

IGBT Snubber

Widely used in power electronic devices in series/parallel resonant circuit;

Widely used in power electronic equipment when the peak voltage,peak current Absorption protection;

MARKING:

YZPST

0. 33 uF ±5% MKPH630VAC

Marking:on.individualcapacitor, includes:

Rated capacitance: such as 334

Rated'voltage: such as630VAC

Capacitance tolerance: such as J

Manufacturer's symbol : YZPST.

Marking on package

Each package unit carry the type, rating, quantity and date of manufacture, location of manufacture, and manufacturer's name

6.EXPLANATION OF IMPORTANT TERMINOLOGY:

Rated capacitance

The rated capacitance value in Pico farads is expressed by a three digit number, the first two digits are significant figures and the last digit specifies the number of zero to follow.

Example: 224 indicated 220,000pF or 0.22uF

225 indicated 2,200,000pF or 2.2Uf

CAPACITANCE UNIT:

1F= 1,000mF= 1,000,000uF= 1,000,000,000nF= 1,000,000,000,000Pf

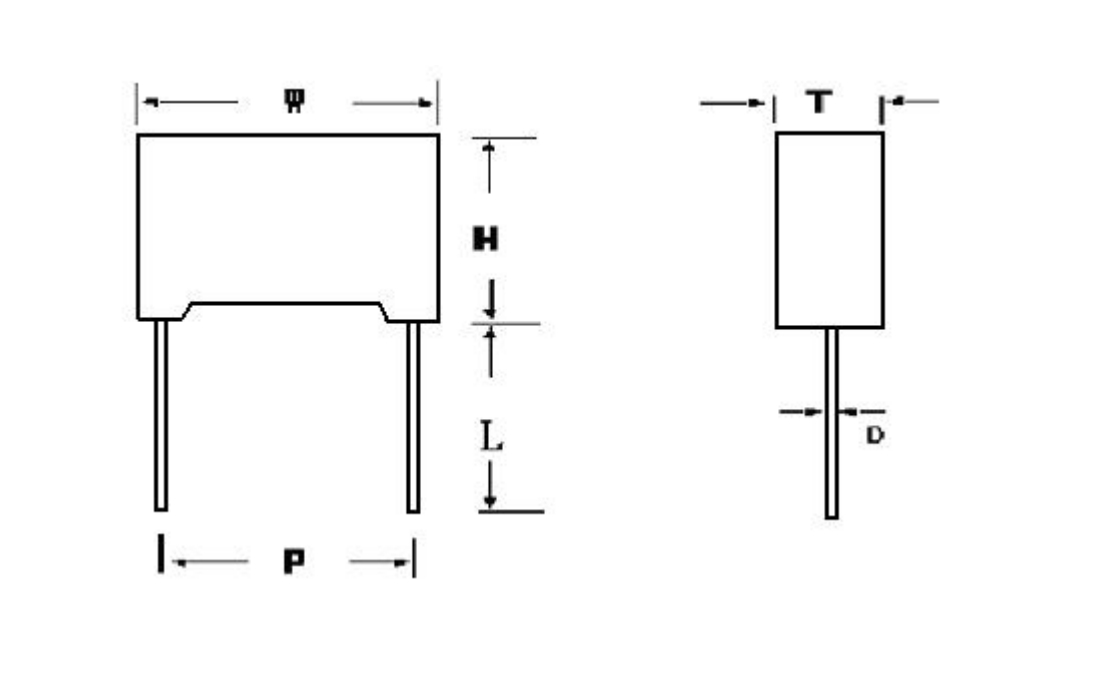

OUTLNE DRAWING:
