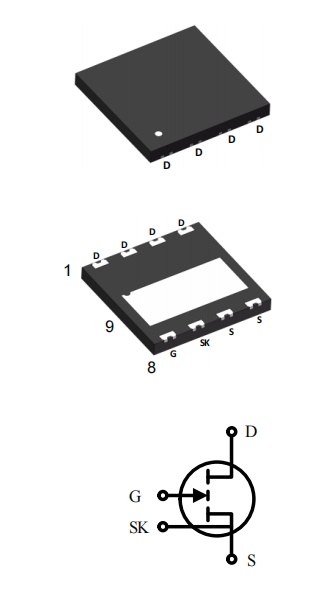

700V 58A 80mΩ Super GaN in DFN8×8
- 产品描述
-
P/N:YZPST-RGN700C29D8700V Super-GaN700V 58A 80mΩ Super GaN in DFN8*8 DatasheetFeaturesEnhancement mode transistor-Normally off power switchUltra high switching frequencyNo reverse-recovery chargeLow gate charge, low output chargeQualified for industrial applications according to JEDEC StandardsESD safeguardRoHS, Pb-free, REACH-compliantApplicationsAC-DC convertersDC-DC convertersBCM/DCM totem pole PFCFast battery chargingHigh density power conversionHigh efficiency power conversion
Key performance parameters at Tj = 25 °C
Parameter
Value
Unit
VDS,max
700
V
RDS(on),max @ VGS = 6 V
80
mΩ
QG,typ @ VDS = 400 V
6.2
nC
ID,pulse
58
A
QOSS @ VDS = 400 V
60
nC
Qrr @ VDS = 400 V
0
nC
Maximum ratings at Tj = 25 °C unless otherwise specified
Parameter
Symbol
Values
Unit
Note/Test Condition
Drain source voltage
VDS,max
700
V
VGS = 0 V,
Tj = -55 °C to 150 °C
Drain source voltage transient 1
VDS,transient
800
V
VGS = 0 V
Drain source voltage, pulsed 2
VDS,pulse
750
V
Tj = 25 °C; total time < 10 h
Tj = 125 °C; total time < 1 h
Continuous current, drain source
ID
29
A
Tc = 25 °C
Pulsed current, drain source 3
ID,pulse
58
A
Tc = 25 °C; VGS = 6 V; tPULSE = 10 µs
Pulsed current, drain source 3
ID,pulse
29
A
Tc = 125 °C; VGS = 6 V; tPULSE = 10 µs
Gate source voltage, continuous
VGS
-6 to +7
V
Tj = -55 °C to 150 °C
Gate source voltage, pulsed
VGS,pulse
-20 to +10
V
Tj = -55 °C to 150 °C;
tPULSE = 50 ns, f = 100 kHz; open drain
Power dissipation
Ptot
188
W
Tc = 25 °C
Operating temperature
Tj
-55 to +150
。C
Storage temperature
Tstg
-55 to +150
。C

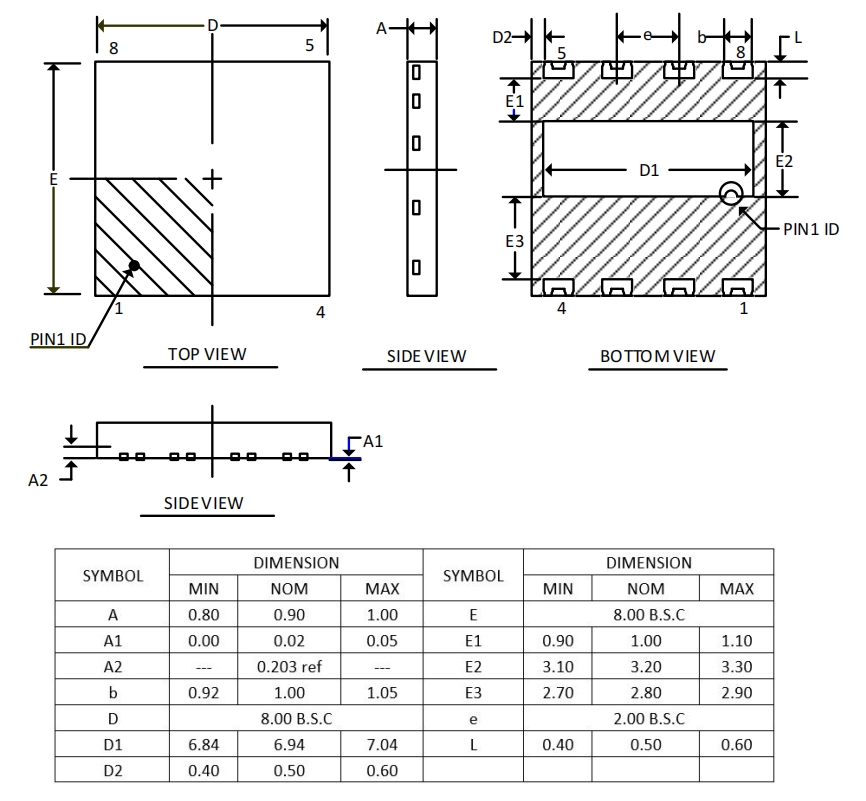

Package outlines
