YZPST-BC41701635KBE1501-01
- 产品描述
-
Type：BC41 Resonant CapacitorDescription: P/N: YZPST-BC41-BE1-500KVAR-700VAC-6.3UFCode: BC41701635KBE1501-01CharacteristicsConduction water-cooledPolypropylene dielectricLow dissipation factor(tgδ),low ESL and low ESRHigh voltage, high frequency and high dv/dt, Excellent heat dissipationIt can be bear large currentApplicationWidely used in high power and high frequency resonant devicesTechnical data
Reference standards
GB/T 3984-2004 IEC 60110.1
Operating temperature range
-40℃~+85℃
Capacitance range
6.3μF
Rated capacitance
500 kVar
Rated voltage
700VAC
Tolerance
±10%
Test voltage between terminals
1.5UNAC 10s
3.0UNDC 10s at 25℃±5℃
Dissipation factor
tgδ≤5×10-4 at 25℃±5℃ , 1kHz
Insulation resistance
R·C≥5000s，at 100VDC，25℃±5℃ , 60s
Life expectancy
100000hrs ( Un θhotspot ≤ 70℃)

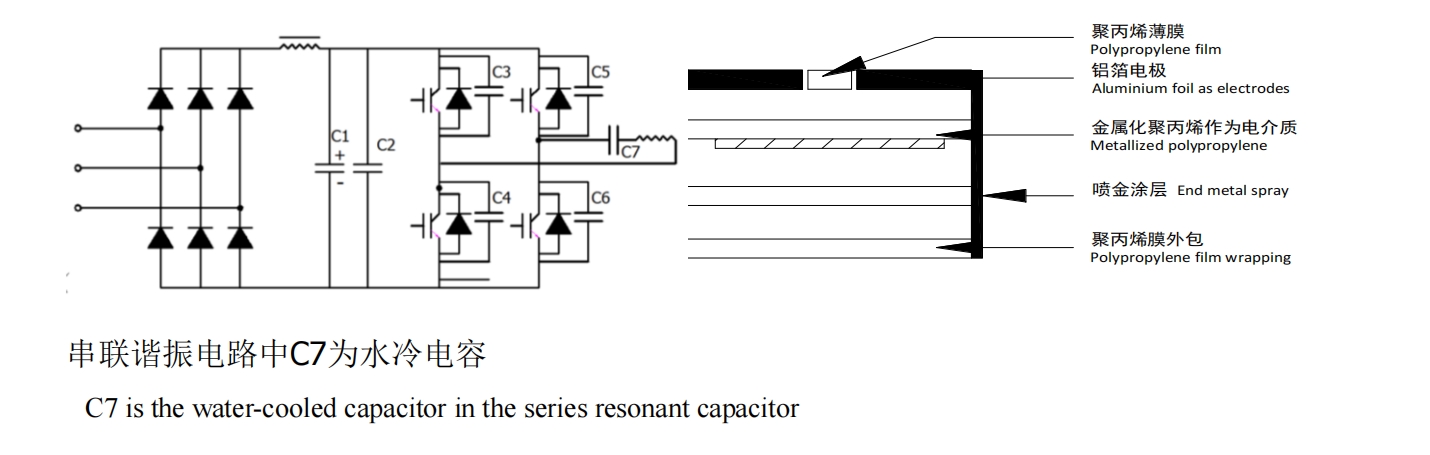

Typical circuit and Construction diagram

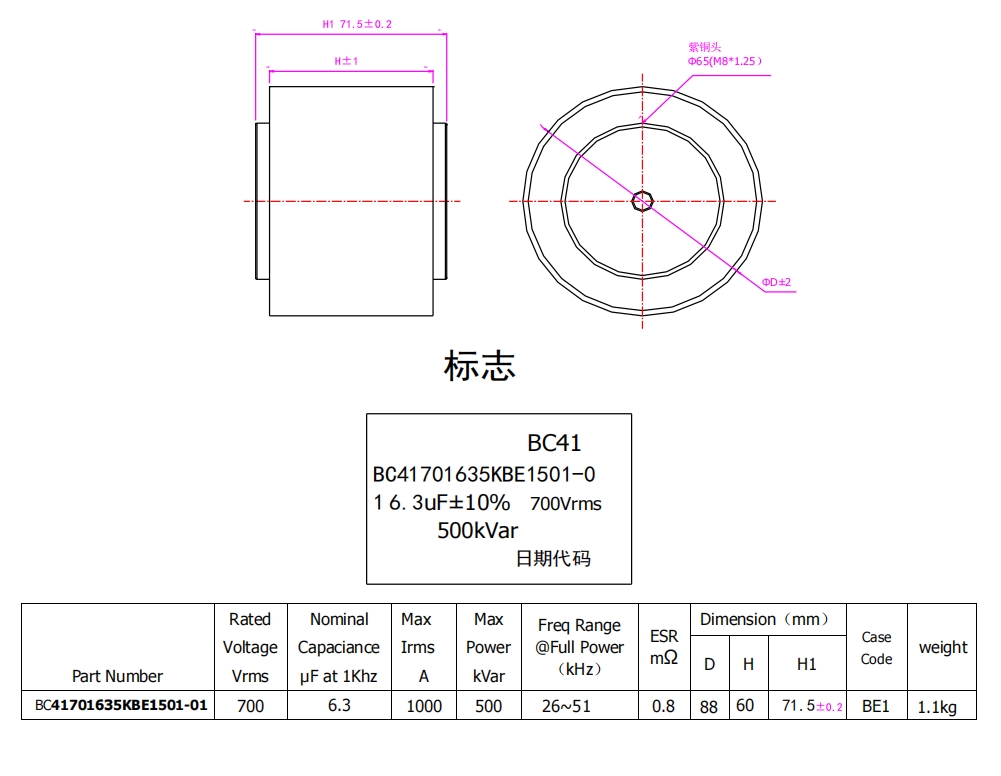

Capacitor Drawing and Terminal Style
