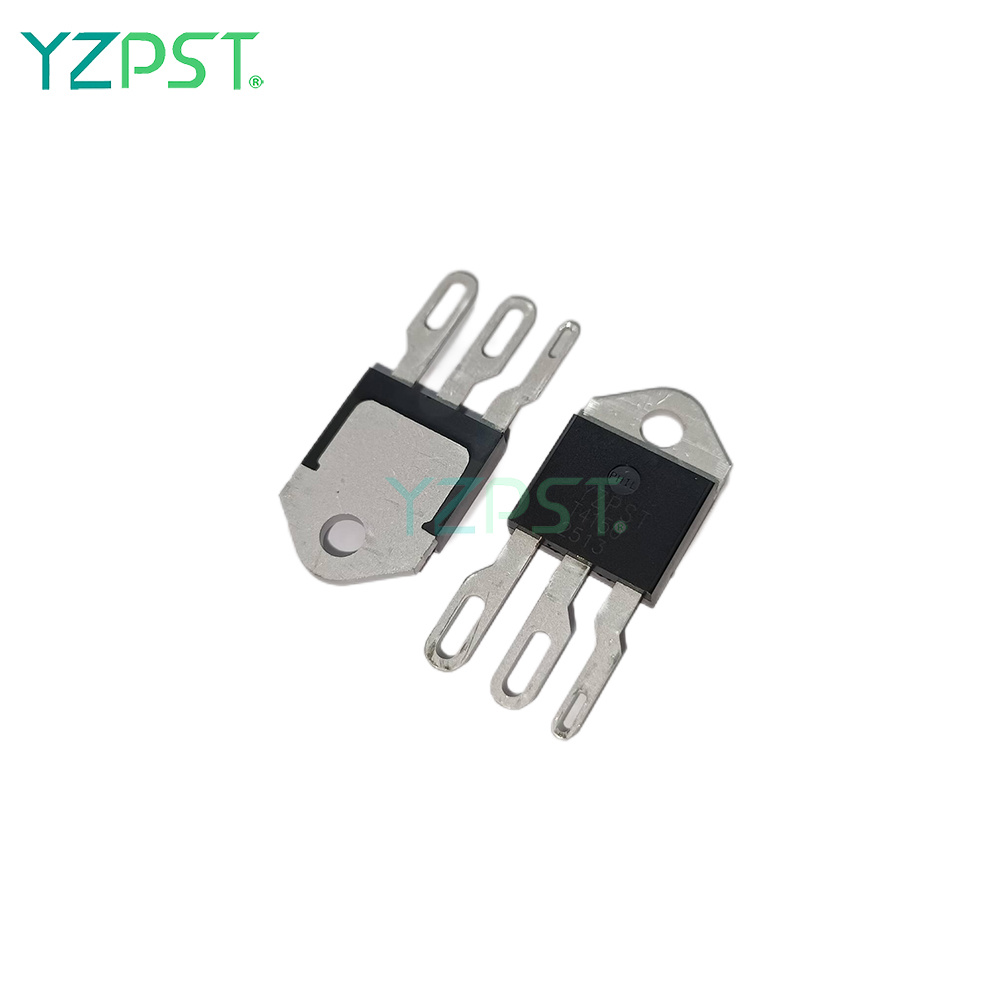

High voltage capacity TO-247 160A SCR
- Product Description
-
P/N:YZPST-CLA100E16 SCRsFEATURESHigh thermal cycling performanceHigh voltage capacityVery high current surge capability lAPPLICATIONSLine rectifying 50/60 HzSoftstart AC motor controlDC Motor controlPower converterAC power controlLighting and temperature control
ABSOLUTE MAXIMUM RATINGS
Parameter
Symbol
Value
Unit
Storage junction temperature range
Tstg
-40 ~ 150
℃
Operating junction temperature range
Tj
-40~ 125
℃
Repetitive peak off-state voltage (T =25℃)
VDRM
1200/1600
V
Repetitive peak reverse voltage (T =25℃)
VRRM
1200/1600
V
Non repetitive surge peak Off-state voltage
VDSM
VDRM +100
V
Non repetitive peak reverse voltage
VRSM
VRRM +100
V
RMS on-state current (T = 100℃)
IT(RMS)
160
A
Non repetitive surge peak on-state current
ITSM
1150
A
Average on-state current (180° conduction angle)
IT(AV)
100
A
I2t value for fusing (tp= 10ms)
I2t
6600
A2 S
Critical rate of rise of on-state curren
t(I =2×IGT, tr ≤ 100 ns)
di/dt
150
A/μS
Peak gate current
IGM
5
A
Average gate power dissipation
PG(AV)
1
W
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified)
Symbol
Test Condition
Value
Unit
IGT
V = 12V R = 140Ω
MAX.
40
mA
VGT
MAX.
1.5
V
VGD
VD=VDRM Tj=125℃ R=1KΩ
MIN.
0.2
V
IL
IG= 1.2IGT Tj=25℃
MAX.
250
mA
IH
VD=12V Tj=25℃
MAX.
200
mA
dV/dt
VD=2/3VDRM Gate Open Tj=125℃
MIN.
1000
V/μs
TO-247 Package Mechanical Data
